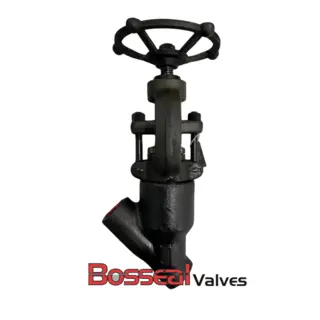

Y Pattern Globe Valve, ASTM A182 F11, 1/2 Inch, 2680 LB, SW

Key Specifications / Features

Model no. : 0.5GLY26SF1105

Explore our premium Y Pattern Globe Valve, crafted following industry standards API 602 and ASME B16.34. Sized at 1/2 inch (DN15) and designed to withstand pressures up to 2680 LB, it features robust construction from ASTM A182 F11 with Trim 5. Engineered with a Pressure Seal Bonnet for enhanced reliability, this valve boasts a Handwheel for effortless operation and is tailored for SW End connections. Trust in our quality craftsmanship for your critical applications.


Detail Information

Forged Y Pattern Globe Valve, API 602, 1/2 INCH, 2680 LB, SW End, F11 Body, Trim 5, Handwheel

Valve Description:
1852030 API 602 Forged Globe Valve 0.5GLY26SF1105
Design Standard: API 602, ASME B16.34
Structure: Pressure Seal Bonnet, OS&Y, Y pattern
Nominal size: 1/2 Inch
Nominal class: 2680 LB
Bore: Regular Bore
End Connection: SW
Operation: Handwheel
Body Material: ASTM A182 F11
Trim Material: F6A+STL, No.5
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid disc, Adjustable Packing Gland, plug disc(parabola disc available), for power plant, steam, high temperature

Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 800-2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +500℃
Operation: Handwheel
