Y Pattern Globe Valve, A105N, 2500 LB, 1/2 IN, API 602

Key Specifications / Features

Model no. : 1852050

We proudly export high-quality ASME B16.34 Y Pattern Globe Valves from China, designed to meet top industry standards, including API 602 and ASTM A105N. This robust valve, with a 1/2 inch size and rated for Class 2500 LB pressure, is engineered for superior performance in high-pressure environments. Featuring a Y pattern design, the valve ensures efficient flow control and reduced pressure drop. It is equipped with a pressure seal bonnet, enhancing its sealing capabilities and reliability. The valve also includes an Outside Screw and Yoke (OS&Y) mechanism for precise operation and is designed with Butt Weld ends for secure and durable connections. Ideal for critical applications requiring high pressure and precise fluid regulation, our Y Pattern Globe Valve combines durability, efficiency, and advanced engineering to meet demanding industrial needs.

Detail Information

ASME B16.34 Y Globe Valve, 1/2 Inch, 2500 LB, Pressure Seal Bonnet, A105N Body, for Power Plant.

Valve Description:

1852050 Globe Valve
Design Standard: ASME B16.34, API 602
Structure: Bolted Bonnet, Pressure Seal Bonnet, Welded Bonnet, Bonnetless
Nominal Size: 1/2 Inch
Nominal Class: 2500 LB
Bore Type: Reduced
Body Material: ASTM A105N, ASTM A182 F11, ASTM A182 F22, ASTM A182 F316, ASTM A182 F91
End Connection: BW(Butt Weld), SW(Socket Weld), NPT(National Pipe Thread)
Operation: Handwheel
Applications: Oil and Gas Industry, Power Generation, Chemical Processing, Water Treatment Plants.
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316
Face to Face: MFG'S
Test and Inspection: API 598
Bonnet Types: Y Globe Valves can feature various bonnet designs, such as bolted or welded, depending on the application and pressure requirements.

Key Features:

1. Rising Stem with Handwheel for Accurate Control
2. Options for Swivel, Plug, or Needle Disc
3. Backseat for Additional Leak Prevention
4. Live Load Packing for Effective Sealing
5. Y-Pattern Design for Optimal Flow Control
6. Outside Screw & Yoke (OS&Y) for Enhanced Reliability
7. Compact and Durable Construction for High-Temperature and High-Pressure Applications


Product Line
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2 Inch - 2 Inch (DN15-DN50)
Pressure Range: Class 800 LB - 4500 LB
Working Temperature: -29°C - +525°C
Operation: Manual or Actuated
End Connection: BW/SW/NPT

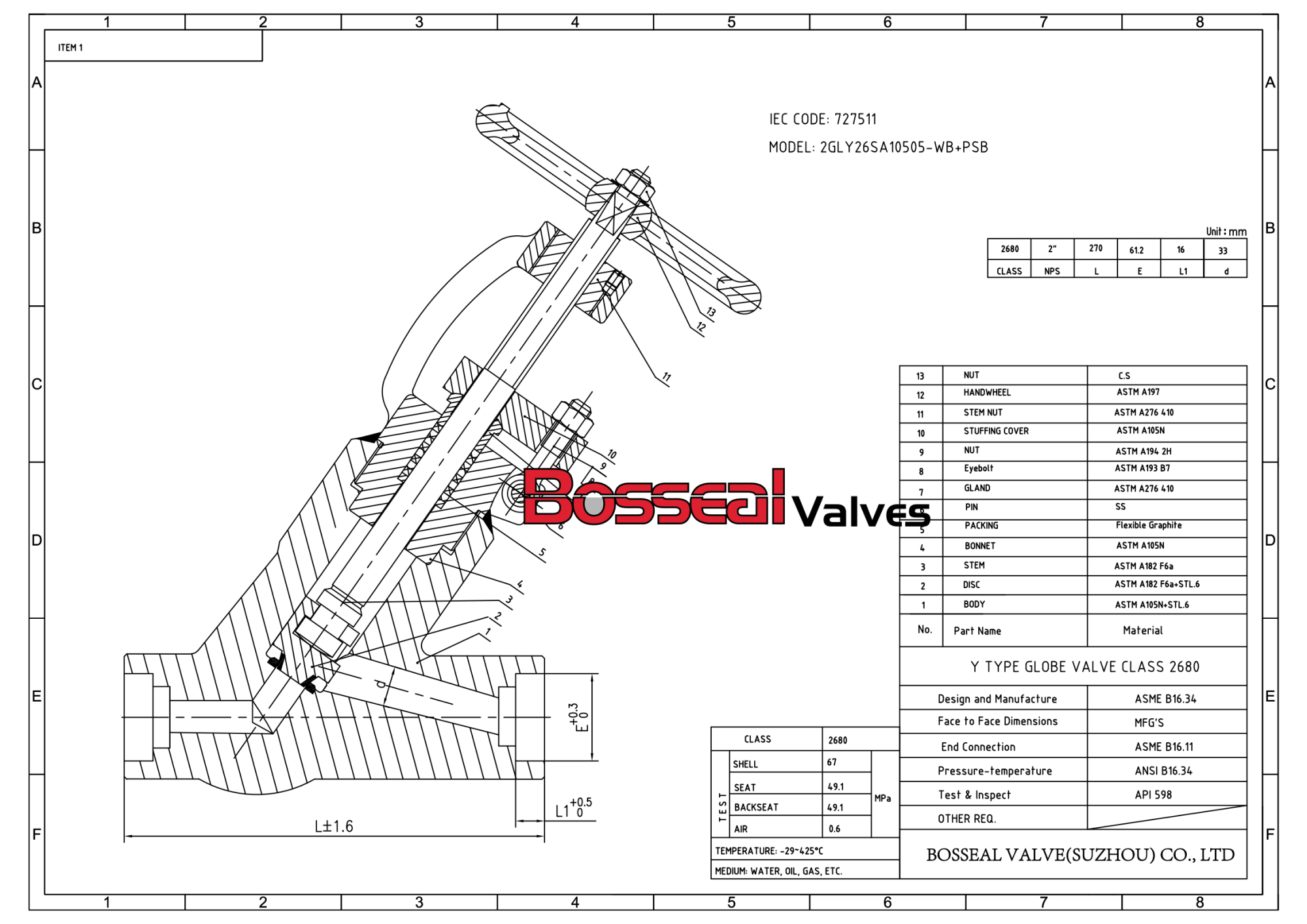

drawing for globe valve
