Welded Bonnet Y Globe Valve, A182 F11, ANSI 4500, 1 IN, NPT

Key Specifications / Features

Model no. : 1852062

As a leading globe valve supplier in China, we offer a high-performance forged ASTM A182 F11 Globe Valve that meets API 602 and ASME B16.34 standards. This 1-inch valve, rated at Class 4500 LB, features a Y-pattern design and a welded bonnet for enhanced durability. Its rising stem with handwheel ensures precise control, making it ideal for demanding applications. This valve is perfectly suited for chemical processing, water treatment plants, and the oil and gas industry. Combining superior construction with reliable functionality, our forged globe valve delivers efficient and dependable operation in high-pressure and high-temperature environments.

Detail Information

API 602 Forged Globe Valve, 1 Inch, Class 4500 LB, Welded Bonnet, ASTM A182 F11 Body, NPT End.


Valve Description:

1852062 Globe Valve
Design Standard: API 602, ASME B16.34
Structure: Welded Bonnet, Bonnetless, Bolted Bonnet, Pressure Seal Bonnet
Nominal Size: 1 Inch, DN25
Nominal Class: CL 4500 LB, PN750
Body Material: ASTM A182 F11, ASTM A182 F91, ASTM A182 F22, ASTM A105N, ASTM A182 F316
Bore Type: Reduced
Face to Face: MFG'S
Operation: Handwheel
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316
Applications: Chemical Processing, Water Treatment Plants, Oil and Gas Industry.
Test and Inspection: API 598
End Connection: NPT(National Pipe Thread), BW(Butt Weld), SW(Socket Weld)

Benefits:

1. Reduced Pressure Drop: Angled flow path enhances efficiency by minimizing resistance.
2. Improved Flow Control: Offers precise regulation for high-pressure and high-temperature conditions.
3. Less Turbulence: Design reduces turbulence, boosting system efficiency and performance.


Key Features:

Y Pattern
OS&Y (Outside Screw & Yoke)
Live Load Packing
Rising Stem with Handwheel
Available with Swivel, Plug, or Needle Disc
Backseat
Compact and Robust Body Suitable for High-Temperature and High-Pressure Service

Product Portfolio:

Normal Diameter: 1/2-2 Inch (DN15-DN50)
Pressure Range: 800-4500 LB
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Operation: Manual or Actuated
End Connection: BW/SW/NPT
Working Temperature: -29°C to +525°C

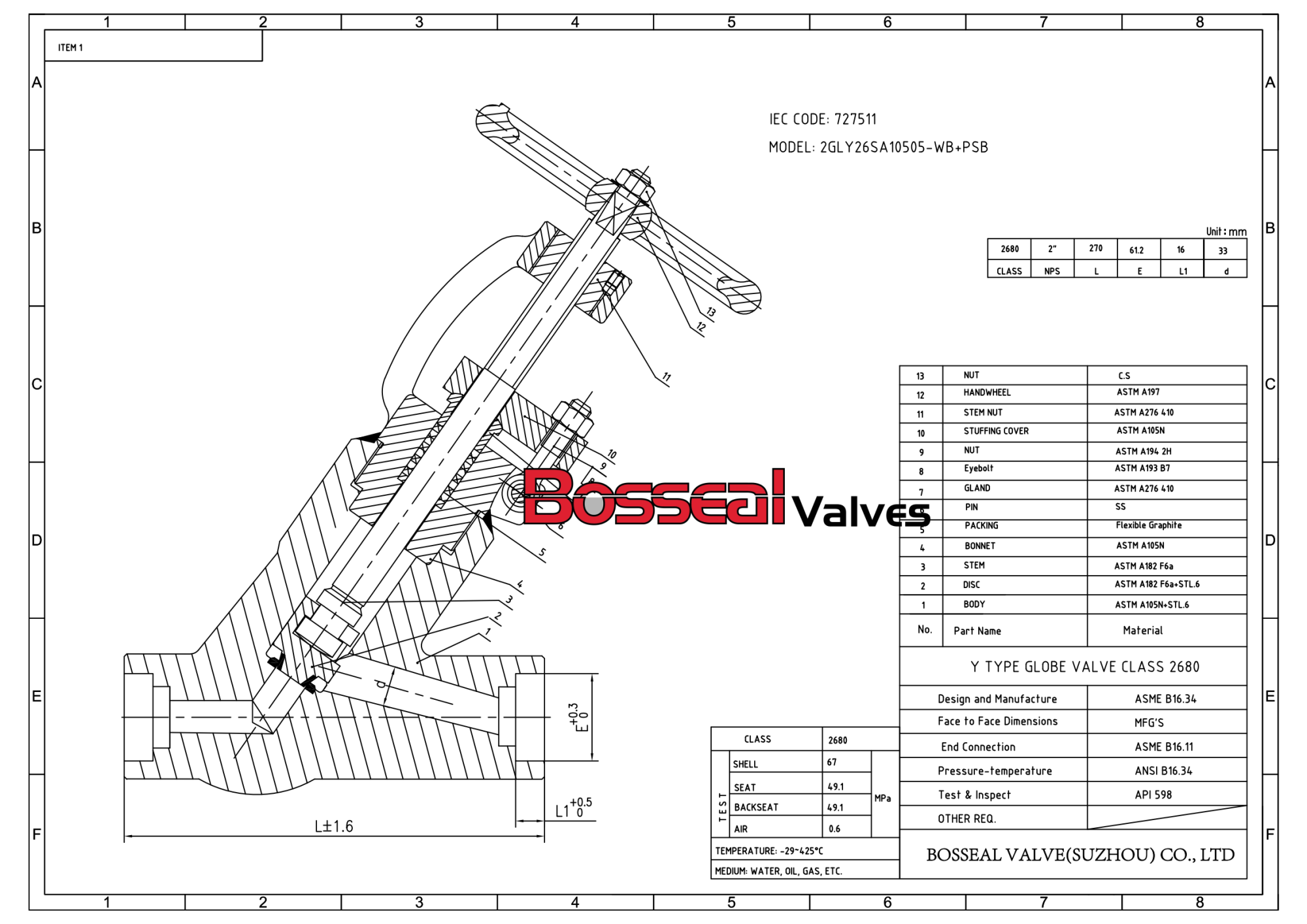

drawing for globe valve
