Key Specifications / Features
Leading the way in titanium alloy valve production, our China-based manufacturer specializes in dual plate check valves that adhere to API 594 and API 6D standards. Our 30-inch valves, rated for Class 300 LB and PN50, feature a compact design available in wafer, lug, and flanged configurations. Engineered for durability and performance, these valves are an excellent choice for demanding industrial applications requiring superior flow control and reliability.

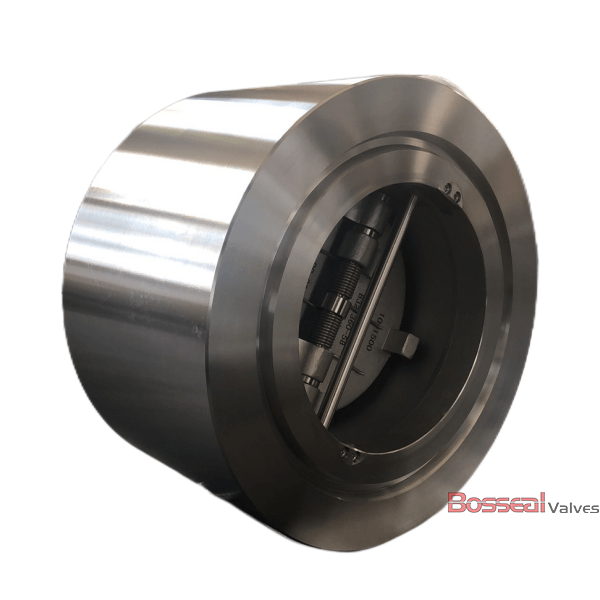

API 594 Dual Plate
Check Valve, Titanium Alloy, 30 Inch, 300 LB, Compact Design, Flanged Ends.
| Check Valve Specification: |
1842054 Dual Plate Check Valve |
| Design Standard: |
API 594, API 6D |
| Structure: |
Spring Loaded, Dual Plate |
| Key Features: |
Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design. |
| Nominal Size: |
30 Inch |
| Nominal Class: |
ANSI Class 300 LB, PN50 |
| Body Material: |
Titanium Alloy, ASTM A890 5A, ASTM A216 WCB, ASTM B148 C95800, ASTM A352 LCB, ASTM A351 CF8, CF8M, ASTM A890 4A. |
| Bore Type: |
/ |
| End Connection: |
Wafer, Lug, Double Flanged |
| Operation: |
/ |
| Trim Material: |
ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, CF8M, ASTM A890 4A, 5A, ASTM B148 C95800, Titanium Alloy. |
| Face to Face: |
API 594 |
| Test and Inspection: |
API 598 |
Product Range:
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 - 2500 LB
Working Temperature: -196°C - +450°C
Operation: Not Applicable (Manual or actuated available for special request)
End Connections: Wafer, Lug, Flanged(FF, RF, RTJ), Butt Weld(BW), HUB
Seat Type: Soft Seat, Metal Seat
