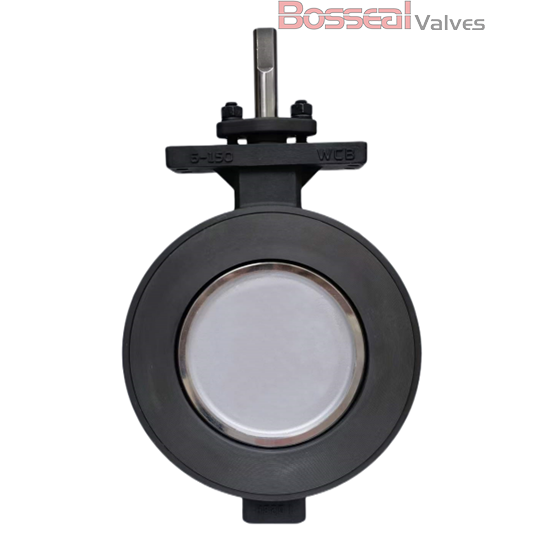

Titanium Alloy Butterfly Valve, CL300, 14IN, Double Offset

Key Specifications / Features

Model no. : 1862314

As a leading API 609 Cat B butterfly valve factory, we specialize in high-performance valves designed to EN 593 standards. Our 14-inch, Class 300 LB valves feature a durable titanium body and a Monel K500 stem, ensuring exceptional strength and corrosion resistance. The double eccentric design and soft seat provide reliable sealing and excellent control. These valves are ideal for isolation and regulation in pipelines, especially where frequent operation is required. Their robust construction and performance make them suitable for demanding industrial applications.

Detail Information

EN 593 Double Eccentric Butterfly Valve, API 609 Cat B, 14 Inch/DN350, 300 LB, Wafer End.

Valve Description

1862314 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Body Material: Titanium, ASTM A890 5A, ASTM B148 C95800, ASTM A890 4A, ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M.
Nominal Size: 14 Inch, DN350
Nominal Class: Class 300 LB, PN50
Seat Type: Soft Seat
Structure: Double Offset, Double Eccentric
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
End Connection: Wafer
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Operation: Gear
Seat: RPTFE, PPL

Key Features

1. Long lifespan for high-frequency operation (up to a million cycles).
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 - 300 LB
Working Temperature: -26°C to +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
