Threaded Bonnet Bronze Gate Valve, MSS SP-80, 1 Inch, CL 200

Name: Threaded Bonnet Bronze Gate Valve, MSS SP-80, 1 Inch, CL 200
SKU: 1876025
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : 1876025

As China's leading bronze gate valve supplier, we manufacture high-quality valves built to MSS SP-80 standards. This 1-inch (DN25) gate valve features an ASTM B62 C83600 bronze body, offering superior corrosion resistance and durability. Rated for Class 200 LB, it comes with a standard bore for efficient fluid flow and threaded ends for secure connections. The union bonnet design ensures easy maintenance, while the handwheel operation provides precise flow control. Our valves are engineered for reliable performance across a wide range of industrial applications.

Request a quote

Tags:

Threaded Bonnet Gate Valve

Bronze Gate Valve

MSS SP-80 Gate Valve

Detail Information

1 Inch Bronze Gate Valve, MSS SP-80, DN25, Class 200 LB, Handwheel, Threaded, Union Bonnet.

Valve Description:

1876025 Gate Valve
Design Standard:	MSS SP-80
Nominal Size:	1 Inch, DN25
Nominal Class:	Class 200 LB
Body Material:	ASTM B62 C83600
Bore Type:	Standard Bore
Structure:	Threaded, Union Bonnet
Operation:	Handwheel
Face to Face:	Manufacturer Standard
Test and Inspection:	MSS SP-80
Trim Material:	ASTM B62 C83600
End Connection:	Threaded ASME B1.20.1

Key Features:

1. Durable renewable solid wedges.
2. Integral seats for better sealing.
3. High-tensile bronze alloy stems for strength.
4. Shell and seat pressure testing per MSS SP-80 standards.
5. Options for rising and non-rising stems.

Product Range:
Body Material: Bronze ASTM B62 C83600
Normal Diameter: 1/4-3 Inch (DN6 – DN80)
Pressure Range: Class 125 LB, 150 LB, 200 LB, 300 LB
Operation: Handwheel
Working Temperature: -20°C to +150°C
End Connection: Threaded

Next: Rising Stem Gate Valve, Bronze C83600, 1-1/2 Inch, CL 200 LB

Previous: ASTM A216 WCB Wedge Gate Valve, API 600, 24 Inch, 150 LB, RF

Similar Products

ASTM B62 C83600 Gate Valves, MSS SP-80, 1 IN, CL300, NPT

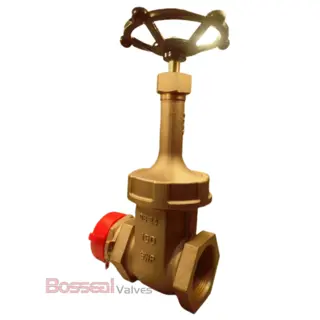

Class 200 LB Bronze Gate Valves, MSS SP-80, 3/8 IN, C83600
