Stainless Steel Butterfly Valve, 150 LB, 12IN, ASTM A351 CF8M

Key Specifications / Features

Model no. : 1862250

As a leading butterfly valve manufacturer in China, we produce high-performance double eccentric butterfly valves designed to API 609 Category B standards. Crafted from durable stainless steel ASTM A351 CF8M, these valves feature a 17-4PH stem and a soft seat for optimal sealing. With a 12-inch size and a 300 LB pressure rating, they are ideal for isolation and flow regulation in demanding pipeline applications, particularly where frequent opening and closing cycles are required.

Detail Information

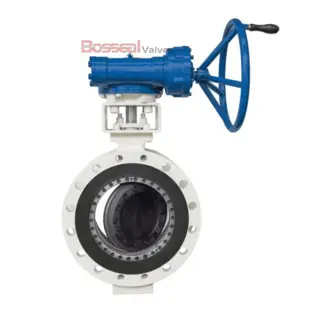

API 609 17-4PH Stem Butterfly Valve, 12 Inch/DN300, 150 LB, Gear Operation.

Valve Description

1862250 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Nominal Size: 12 Inch, DN350
Nominal Class: Class 150 LB, PN16
Body Material: ASTM A351 CF8M, ASTM A216 WCB, ASTM B148 C95800, ASTM A890 5A, ASTM A890 4A, Titanium, ASTM A351 CF8.
Seat Type: Soft Seat
Face to Face: API 609, EN 593
Operation: Gear
Seat: RPTFE, PPL
Structure: Double Offset, Double Eccentric
End Connection: Double Flanged
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2  - 48 Inch (DN15 - DN1200)
Pressure Range: 150  - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
