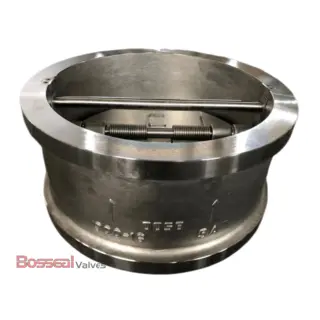

Spring Loaded Dual Check Valve, 4 IN, 900 LB, ASTM A351 CF8M

Key Specifications / Features

Model no. : 1842084

We are a leading manufacturer of ASTM A351 CF8M dual plate check valves, delivering exceptional quality and performance. Our 4-inch valves comply with API 6D and API 594 standards and are constructed from durable stainless steel. Rated for 900 LB and PN 150, these valves feature a spring-loaded design for reliable operation and longevity. The wafer end configuration ensures ease of installation and maintenance. Our dual plate check valves offer superior sealing and efficient backflow prevention, making them ideal for demanding industrial applications. Trust our expertise to provide robust and dependable valve solutions tailored to your needs.


Detail Information

Spring Loaded Dual Plate Check Valve, API 6D, 4 Inch, 900 LB, ASTM A351 CF8M Body, Wafer End.

Check Valve Description

1842084 Dual Plate Check Valve
Design Standard: API 6D, API 594
Structure: Spring Loaded, Dual Plate
Nominal Size: 4 Inch, DN100
Nominal Class: Class 900 LB, PN150
Body Material: ASTM A351 CF8M, ASTM A351 CF8, ASTM A352 LCB, Titanium Alloy, ASTM A216 WCB, ASTM B148 C95800, ASTM A890 5A, ASTM A890 4A.
Bore Type: /
End Connection: Wafer, Lug, Double Flanged
Operation: /
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598
Key Features: Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design.

Product Portfolio

Seat Type: Soft Seat, Metal Seat
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 2500 LB
Working Temperature: -196°C - +450°C
Operation: Not Applicable (Manual or actuated available for special request)
End Connections: Wafer, Lug, Flanged(FF, RF, RTJ), Butt Weld(BW), HUB

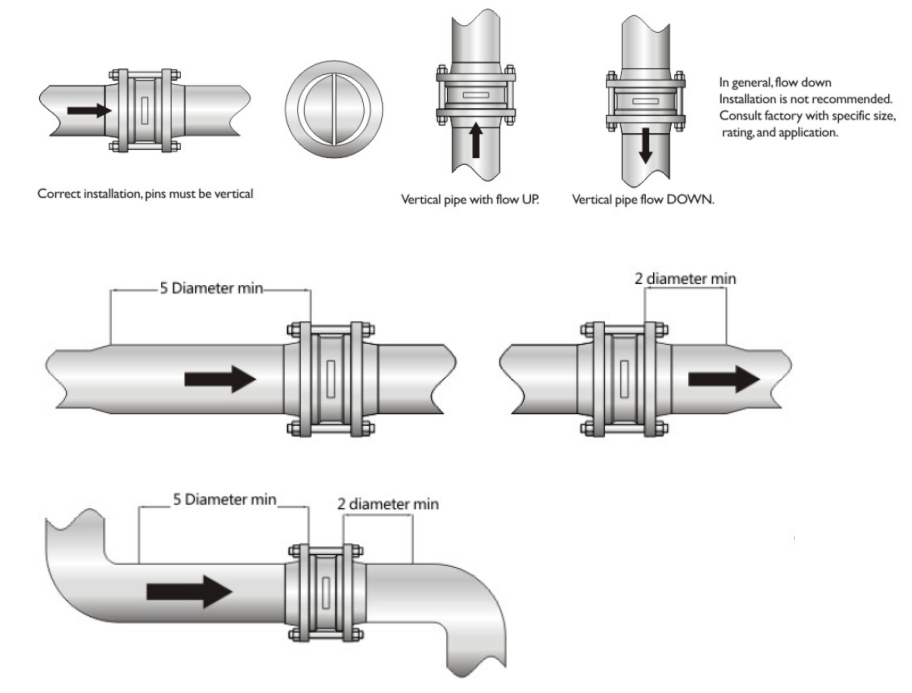

Recommended Installation

Recommended Installation
