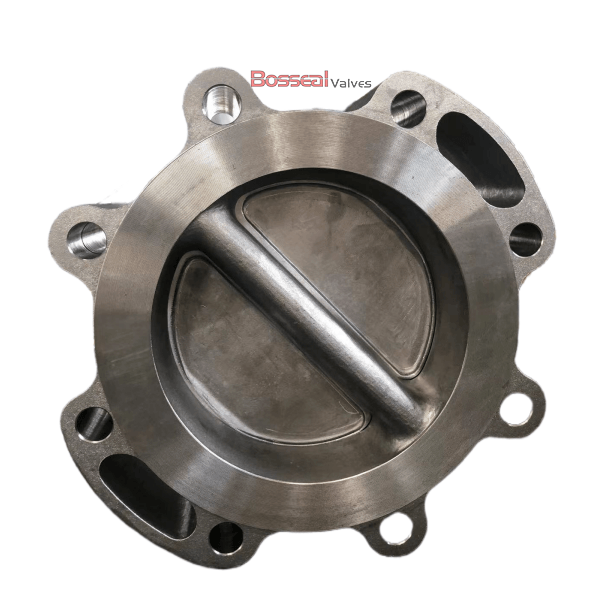

Spring Loaded Dual Check Valve, 36 IN, 300 LB, A352 LCB

Name: Spring Loaded Dual Check Valve, 36 IN, 300 LB, A352 LCB
SKU: 1842056
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : 1842056

Specializing in ASTM A352 LCB dual plate check valves, our China-based manufacturer produces valves that meet API 6D and API 594 standards. Crafted from high-quality carbon steel, these 36-inch valves are rated for 300 LB and PN50. Featuring wafer ends and a spring-loaded design, our valves offer reliable performance and durability in various industrial applications. Trust us for superior flow control and peace of mind.

Request a quote

Tags:

ASTM A352 LCB Check Valve

Spring Loaded Check Valve

36 Inch Check Valve

Detail Information

Spring Loaded Dual Plate Check Valve, API 6D, 36 Inch, 300 LB, ASTM A352 LCB Body, Wafer End.

Check Valve Description:
1842056 Dual Plate Check Valve
Design Standard: API 6D, API 594
Structure: Spring Loaded, Dual Plate
Nominal Size: 36 Inch
Nominal Class: Class 300 LB, PN50
Body Material: ASTM A352 LCB, Titanium Alloy, ASTM A351 CF8, ASTM A216 WCB, ASTM B148 C95800, ASTM A890 5A, ASTM A351 CF8M, ASTM A890 4A.
Bore Type: /
End Connection: Wafer, Lug, Double Flanged
Operation: /
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598
Key Features: Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design.

Product Portfolio:

Body Material:	Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Aluminum Bronze, Titanium
Normal Diameter:	1/2 - 48 Inch (DN15 - DN1200)
Pressure Range:	Class 150 LB - 2500 LB
Working Temperature:	-196°C to +450°C
Operation:	Not Applicable (Manual or actuated available for special request)
Seat Type:	Soft Seat, Metal Seat
End Connections:	Wafer, Lug, Flanged(FF, RF, RTJ), Butt Weld(BW), HUB

Next: API 6D Dual Check Valve, 42 Inch, Class 300 LB, A351 CF8M

Previous: ASTM A351 CF8M Dual Plate Check Valve, API 594, 6 IN, 150 LB

Similar Products

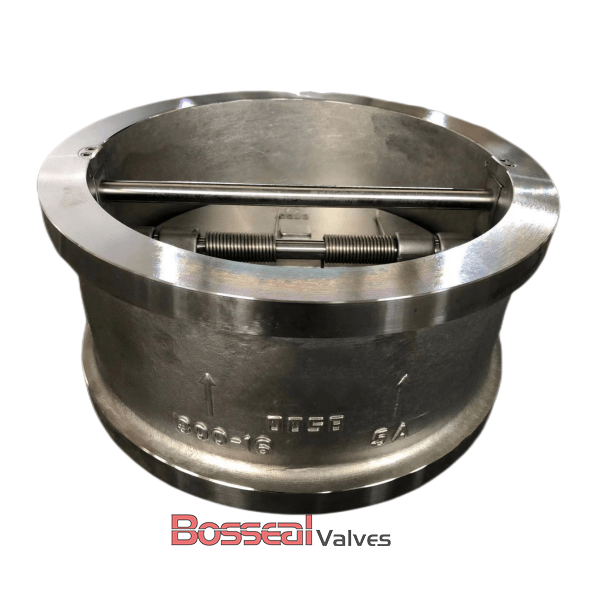

Spring Loaded Dual Check Valve, 12 IN, 300 LB, Titanium Alloy

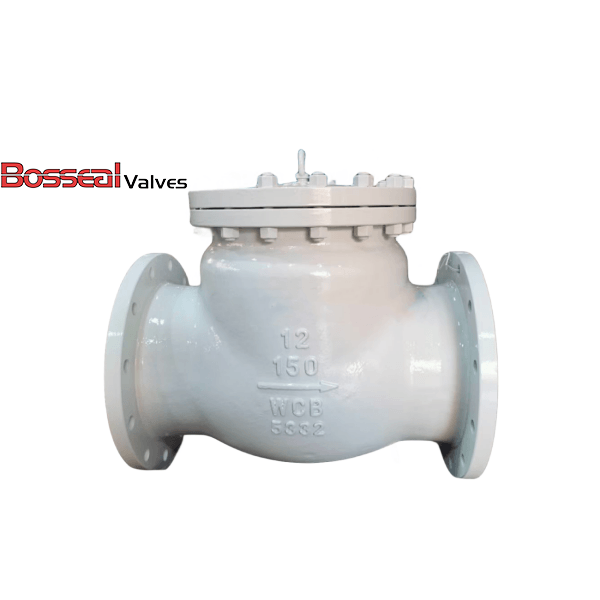

20 Inch Swing Check Valves, API 594, 300 LB, A352 LCB, RF

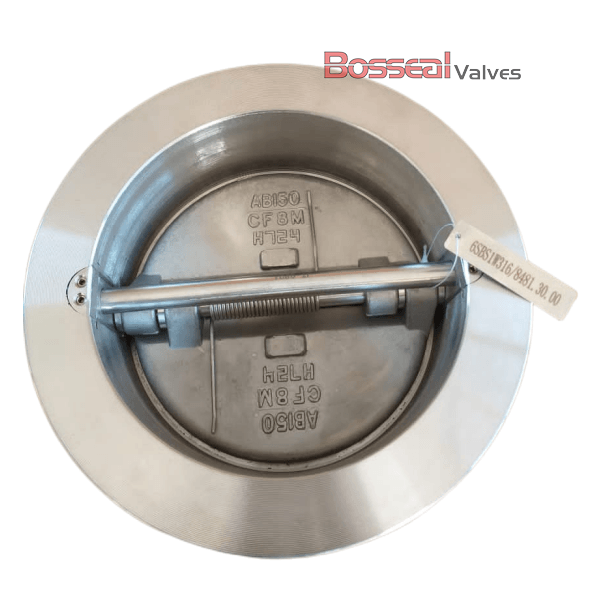

ASTM A352 LCB Dual Check Valve, 36 Inch, 150 LB, API 6D,594

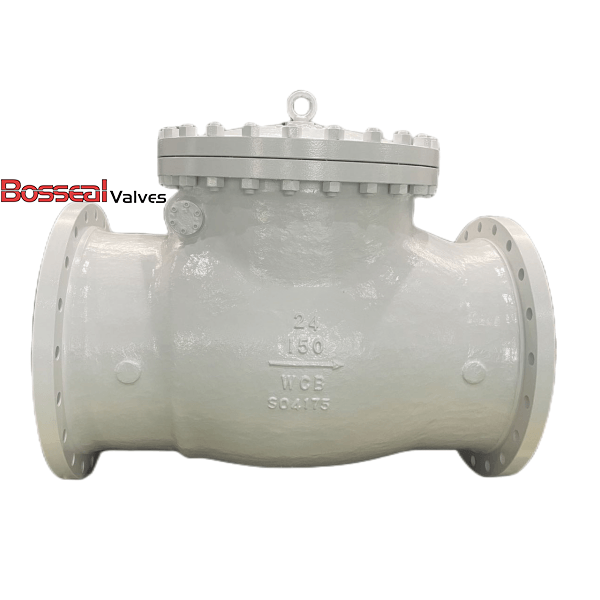

2-1/2 Inch Swing Check Valves, 300 LB, A352 LCB, API 594, RF
