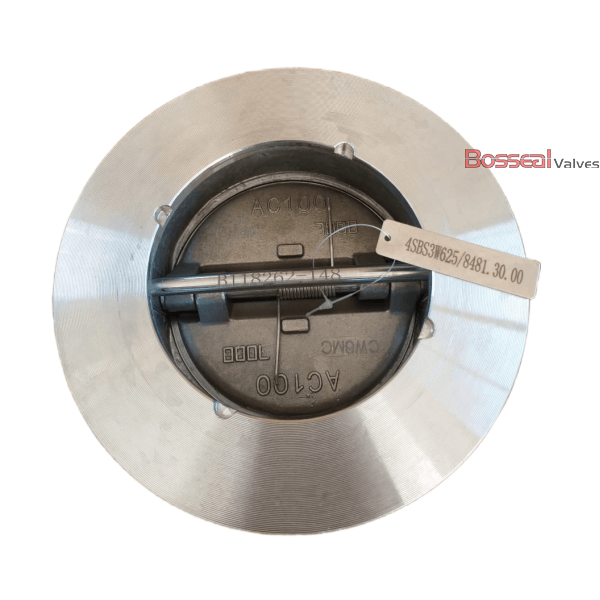

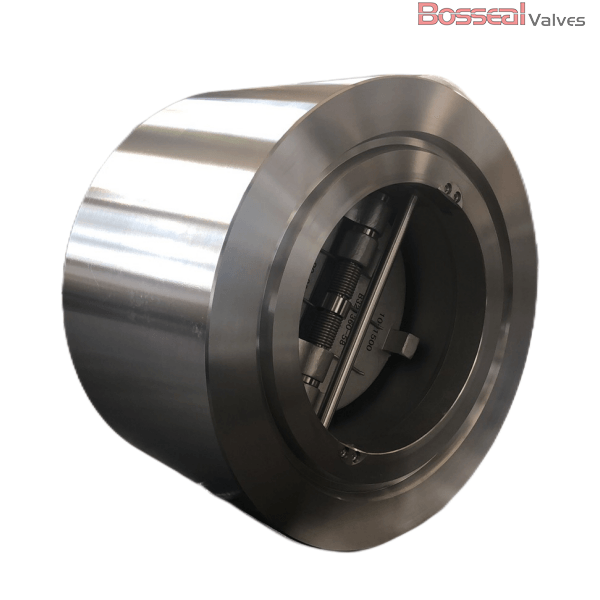

Spring Loaded Dual Check Valve, 2 IN, 2500 LB, ASTM A890 4A

Key Specifications / Features

Model no. : CV-20240816-09

As a leading manufacturer of dual plate check valves from China, we specialize in valves made from ASTM A890 4A duplex stainless steel. Our 2-inch valve, with a DN50 size, adheres to API 6D and API 594 standards and is rated for 2500 LB pressure and PN420. Featuring wafer ends, this valve combines robust construction with a compact design, ensuring reliable performance and durability in high-pressure applications.


Detail Information

Spring Loaded Dual Plate Check Valve, API 6D, 2 Inch/DN50, 2500 LB, PN420, ASTM A890 4A Body, Wafer End.


Check Valve Description

1842123 Dual Plate Check Valve
Design Standard: API 6D, API 594
Structure: Spring Loaded, Dual Plate
Nominal Size: 2 Inch, DN50
Nominal Class: Class 2500 LB, PN420
Body Material: ASTM A890 4A, ASTM A351 CF8M, ASTM A351 CF8, ASTM A352 LCB, Titanium Alloy, ASTM A216 WCB, ASTM B148 C95800, ASTM A890 5A.
Bore Type: /
End Connection: Wafer, Lug, Double Flanged
Operation: /
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598
Key Features: Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design.


Product Portfolio

Seat Type: Soft Seat, Metal Seat
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 - 48 IN (DN15 - DN1200)
Pressure Range: Class 150 LB - 2500 LB
Working Temperature: -196°C - +450°C
Operation: Not Applicable (Manual or actuated available for special request)
End Connections: Wafer, Lug, Flanged(FF, RF, RTJ), Butt Weld(BW), HUB
