Spring Loaded Dual Check Valve, 10 IN, 600 LB, ASTM A351 CF8

Name: Spring Loaded Dual Check Valve, 10 IN, 600 LB, ASTM A351 CF8
SKU: 1842066
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : 1842066

As a leading manufacturer of ASTM A351 CF8 dual plate check valves from China, we offer 10-inch valves with 600 LB and PN100 ratings, adhering to API 6D and API 594 standards. Constructed from high-quality stainless steel, these valves feature a spring-loaded design and wafer ends for easy installation. Engineered for optimal performance, they provide reliable backflow prevention and durability in demanding applications. Our check valves are designed to meet stringent industry requirements while offering efficient and robust service.

Request a quote

Tags:

ASTM A351 CF8 Check Valve

Spring Loaded Check Valve

10 Inch Check Valve

Detail Information

Spring Loaded Dual Plate Check Valve, API 6D, 10 Inch, 600 LB, ASTM A351 CF8 Body, Wafer End.

Check Valve Description

1842066 Dual Plate Check Valve
Design Standard: API 6D, API 594
Structure: Spring Loaded, Dual Plate
Nominal Size: 10 Inch
Nominal Class: Class 600 LB, PN100
Body Material: ASTM A351 CF8, ASTM A352 LCB, Titanium Alloy, ASTM A216 WCB, ASTM B148 C95800, ASTM A890 5A, ASTM A351 CF8M, ASTM A890 4A.
Bore Type: /
End Connection: Wafer, Lug, Double Flanged
Operation: /
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598
Key Features: Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design.

Product Portfolio

Seat Type: Soft Seat, Metal Seat
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 2500 LB
Working Temperature: -196°C - +450°C
Operation: Not Applicable (Manual or actuated available for special request)
End Connections: Wafer, Lug, Flanged(FF, RF, RTJ), Butt Weld(BW), HUB

Next: Titanium Alloy Check Valve, 12 IN, CL 600 LB, API 594, 6D

Previous: ASTM A351 CF8M Dual Plate Check Valve, API 594, 6 IN, 150 LB

Similar Products

API 6D Non-Return Valve, ASTM A351 CF8, 10 IN, CL2500

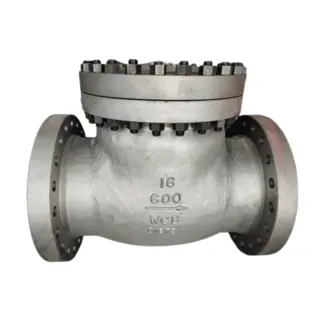

ASTM A216 WCB Swing Check Valve, 20 Inch, 600 LB, BS 1868
