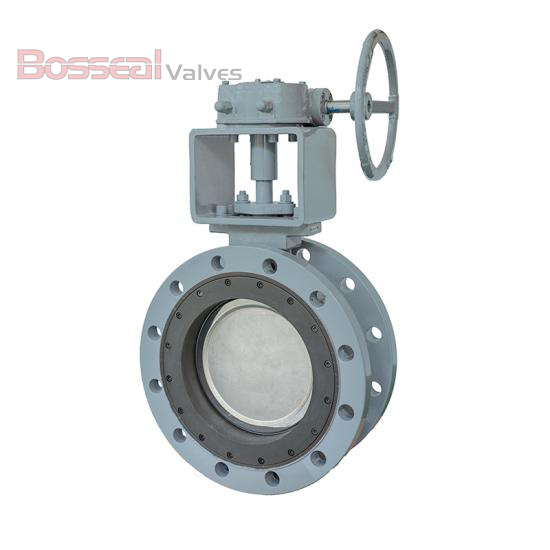

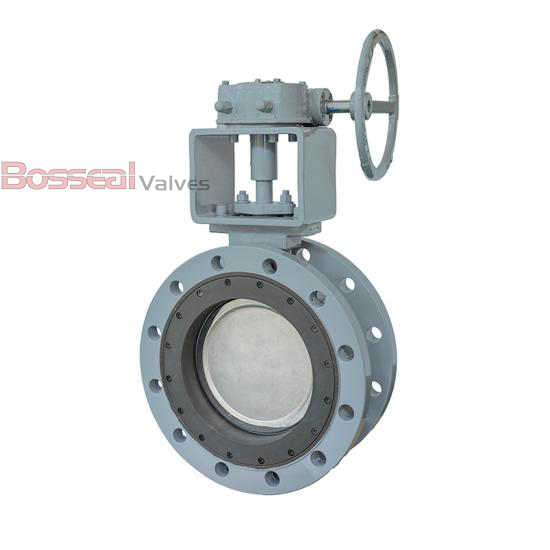

Soft Seated Titanium Butterfly Valves, CL300, 12 IN, EN 593

Key Specifications / Features

Model no. : 1862271

As a trusted supplier of double offset butterfly valves in China, we offer high-performance valves built to API 609 Category B standards. Our 12-inch (DN300), Class 300 LB valves feature a titanium body for superior corrosion resistance and a 17-4PH stem for added strength. Equipped with a soft RPTFE seat, these valves ensure reliable sealing and smooth operation in demanding applications. Engineered for durability, they are ideal for isolation and flow control in pipelines, delivering long-lasting performance in harsh environments.

Detail Information

API 609 Cat B Double Offset Butterfly Valves, 12 Inch/DN300, Soft Seated, Gear Operation.

Valve Description

1862271 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Nominal Size: 12 Inch, DN300
Nominal Class: 300 LBS, PN50
Seat Type: Soft Seat
Operation: Gear
Structure: Double Offset, Double Eccentric
Body Material: Titanium, ASTM A351 CF8M, ASTM A890 4A, ASTM B148 C95800, ASTM A890 5A, ASTM A216 WCB, ASTM A351 CF8.
Seat: RPTFE, PPL
End Connection: Double Flanged
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Working Temperature: -26°C to +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Bosseal Valve advantages: 0 Leakage, low Torque, Long working life, Low Emission, Bi-direction and Fire Safe.

Drawing for Double Offset Butterfly Valves
