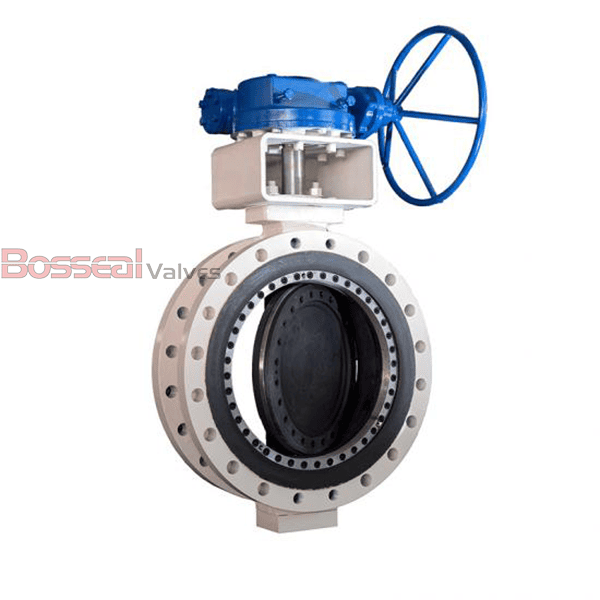

Soft Seated Butterfly Valves, CL150, 3 IN, API 609, A890 5A

Key Specifications / Features

Model no. : 1862371

As a leading supplier of double offset butterfly valves in China, we provide valves with a soft RPTFE seat and a robust ASTM A890 5A body. Our 3-inch, DN80 valves are rated for 150 LBS and feature a Monel K500 stem for enhanced corrosion resistance. The Bosseal valves offer significant advantages, including zero leakage, low torque, long service life, low emissions, bi-directional flow, and fire-safe performance. These features make our valves an excellent choice for demanding applications requiring reliability and efficiency.

Detail Information

API 609 Cat B Double Offset Butterfly Valves, 3 Inch/DN80, Soft Seated, Lever Operation.

Valve Description

1862371 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Nominal Size: 3 Inch, DN80
Nominal Class: 150 LBS, PN20
Seat Type: Soft Seat
Operation: Lever
Structure: Double Offset, Double Eccentric
Body Material: ASTM A890 5A, ASTM A216 WCB, ASTM A351 CF8, ASTM A890 4A, Titanium, ASTM A351 CF8M, ASTM B148 C95800.
Seat: RPTFE, PPL
End Connection: Double Flanged
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Working Temperature: -26°C to +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Bosseal Valve advantages: 0 Leakage, low Torque, Long working life, Low Emission, Bi-direction, and Fire safety.
