Soft Seated Butterfly Valves, CL150, 10 IN, EN 593, A890 4A

Key Specifications / Features

Model no. : 1862291

We supply high-quality double-offset butterfly valves designed to meet API 609 Category B standards. These valves feature both soft and RPTFE seats, ensuring reliable sealing and performance. Constructed with a durable A890 4A stainless steel body, they are available in a 10-inch size (DN250) and rated at Class 150 LBS. Equipped with a corrosion-resistant Monel K500 stem, these valves are ideal for demanding industrial environments where precision and longevity are critical. Our valves offer excellent flow control and durability for various applications.

Detail Information

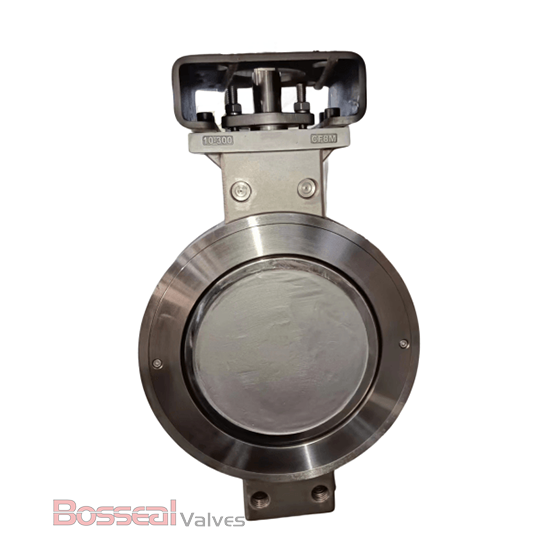

API 609 Cat B Double Offset Butterfly Valves, 10 Inch/DN250, Soft Seated, Gear Operation.

Valve Description

1862291 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Nominal Size: 10 Inch, DN250
Nominal Class: 150 LBS, PN20
Seat Type: Soft Seat
Operation: Gear
Structure: Double Offset, Double Eccentric
Body Material: ASTM A890 4A, Titanium, ASTM A351 CF8M, ASTM B148 C95800, ASTM A890 5A, ASTM A216 WCB, ASTM A351 CF8.
Seat: RPTFE, PPL
End Connection: Wafer
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Working Temperature: -26°C to +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Bosseal Valve advantages: 0 Leakage, low Torque, Long working life, Low Emission, Bi-direction and Fire Safe.
