Key Specifications / Features
Discover premium quality soft seat two-piece ball valves at our factory, compliant with API 608, ISO 17292, and API 6D standards. Available in 1-1/2 inch (DN40) size, with a Class 150 LB and PN20 rating. Constructed from ASTM A216 WCB material with F316 trim, featuring side entry and pneumatic operation. Experience reliability and efficiency with RF valves crafted to perfection.
Detail Information

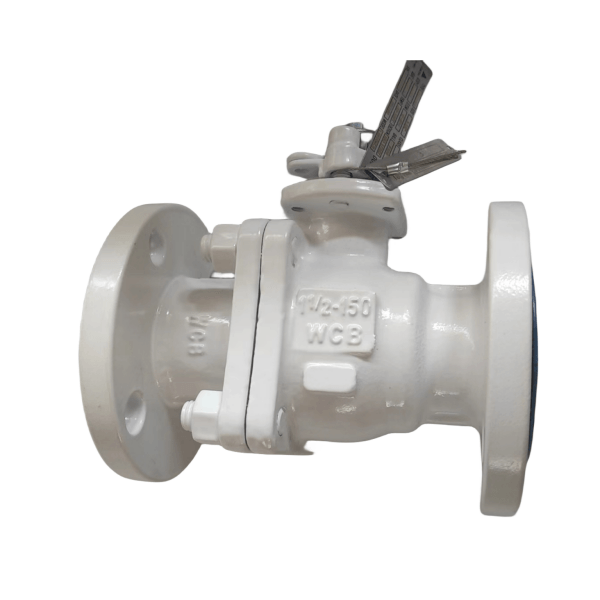

Floating Ball Valve, ISO 17292, DN40, 150 LB, RF, WCB Body, F316 Trim, Soft Seat, ISO 5211 Mounting pad, Pneumatic Operation
Valve Description:
1812057 Floating Ball Valve 1.5B1RWCB-P
Design Standard: API 608, ISO 17292, API 6D
Structure: Two pieces body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 1-1/2 Inch, DN40
Nominal class: 150 lb
Bore Type: Full Bore
End Connection: RF Flanged
Operation: Pneumatic Actuator
Body Material: ASTM A216 WCB
Trim Material: ASTM A182 F316, RPTFE/TFM 1600
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Anti-static Device, Fire Safe, Anti-Blowout Stem, Locking Device
Product Range:
Body material: Stainless Steel
Normal diameter: 1/2 - 8 Inch (DN15 - DN200)
Pressure range: Class 150 - 300LB
End connection: RF, RTJ, SW, NPT, BW
Working temperature: -29℃ - +150℃
Operation: Lever, Spring Return Lever, Pneumatic Actuator
