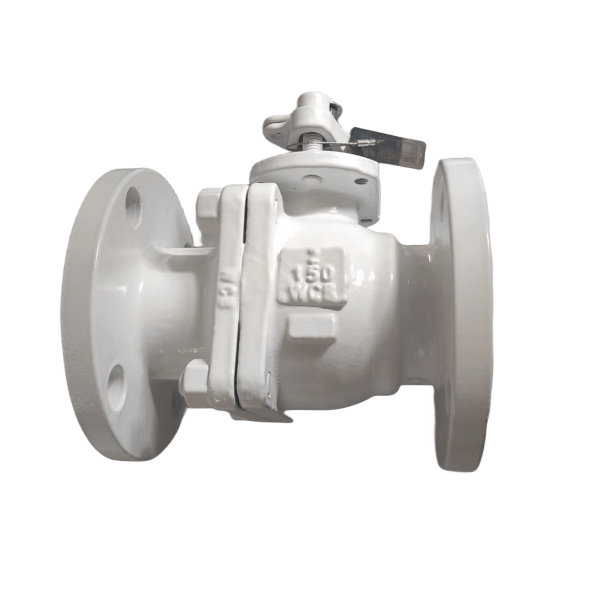

Soft Seat Ball Valve, API 6D, API 608, WCB, 3 Inch, 150 LB

Key Specifications / Features

Model no. : 3B1RWCB

Discover the leading Soft Seat Ball Valve provider offering a 3-inch, DN80, 150 LB, PN20 valve with ASTM A216 WCB construction. Our Two-Piece design, Lever Operation, RF Flanged connection, and built-in features like Anti-static, Anti-Blowout Stem, and Fire Safe ensure top-tier performance and safety.


Detail Information

Floating Ball Valve, API 608, DN80, 3 Inch, 150 LB, RF, A216 WCB Body, F316 Trim, Soft Seat, ISO 5211 Mounting pad, Lever Operation

Valve Description:
1812023 Floating Ball Valve 3B1RWCB
Design Standard: API 608, ISO 17292, API 6D
Structure: Two pieces body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 3 Inch, DN80
Nominal class: 150 LB
Bore Type: Full Bore
End Connection: RF Flanged
Operation: Lever Operation
Body Material: ASTM A216 WCB
Trim Material: ASTM A182 F316, RPTFE/TFM 1600
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Anti-static Device, Fire Safe, Anti-Blowout Stem, Locking Device

Product Range:
Body material: Stainless Steel
Normal diameter: 1/2 - 8 Inch (DN15 - DN200)
Pressure range: Class 150 - 300 LB
End connection: RF, RTJ, SW, NPT, BW
Working temperature: -29℃ - +150℃
Operation: Lever, Spring Return Lever, Pneumatic Actuator
