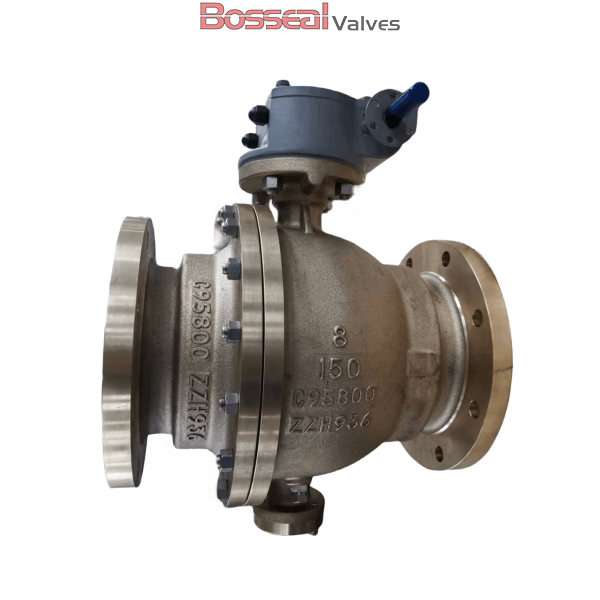

Side Entry Ball Valve, API 6D, BS 5351, C95800, 16 IN, CL150

Key Specifications / Features

Model no. : BV-187301010

As a leading side entry ball valve supplier, we offer high-quality valves designed to API 6D and BS 5351 standards. Featuring an aluminum bronze ASTM B148 C95800 body, this 16-inch valve is built for durability and corrosion resistance. It is equipped with ASTM B150 C63200 trim and an RPTFE seat for reliable sealing. With a Class 150 LB pressure rating and RF flanged ends, this valve ensures secure connections and easy installation. Ideal for various industrial applications, our valves provide long-lasting performance and exceptional strength in demanding environments.

Detail Information

Valve Description:
187301010 Aluminum Bronze Ball Valve
Design Standard: API 6D, BS 5351, ASME B16.34
Structure: 2pcs Body, Side Entry, Bolted Bonnet, Soft Seat
Nominal Size: 16 Inch, DN400
Nominal Class: Class 150 LB, PN20
Bore Type: Full Bore or Reduced Bore
End Connection: FF or RF Flanged
Operation: Gear
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800, ASTM B150 C63200, Monel
Seat Insert: RPTFE
Face to Face: ASME B16.10
Test and Inspection: API 598, API 6D
Key Features: Double Block&Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency Sealant Injection, Low Emission(Optional), DIB (Optional), Aluminum Bronze for Sea Water Service

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
End Connection: RF, FF
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator

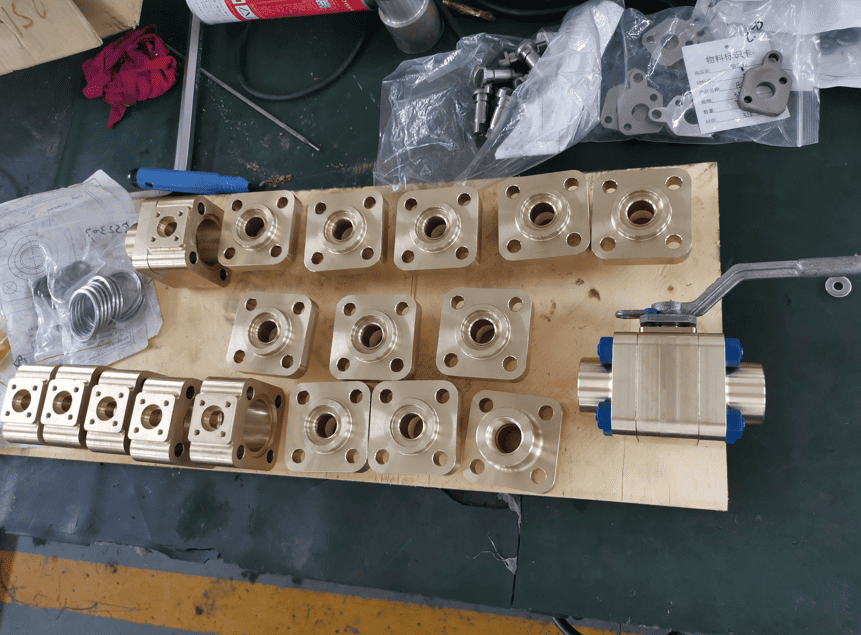

Aluminum Bronze Ball Valves

Name*
E-mail*
Rate*
Comments*

Next: Aluminum Bronze C95800 Ball Valve, API 6D, 18 Inch, 150 LB

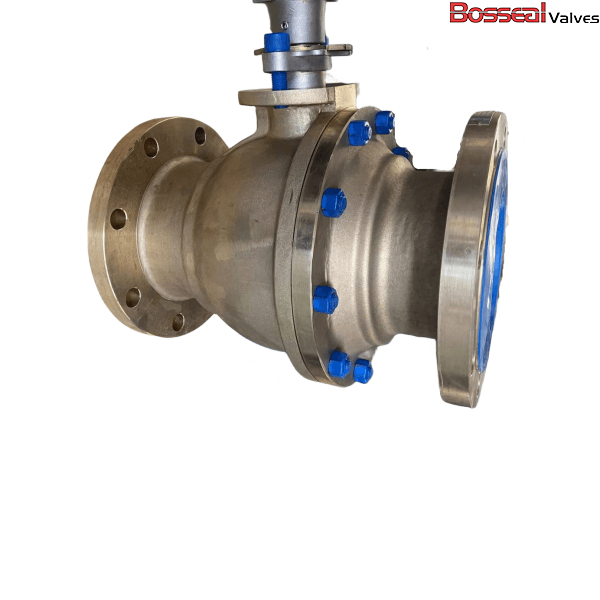

Previous: 2PC Aluminum Bronze Ball Valve, API 6D, C95800, 12 IN, CL150

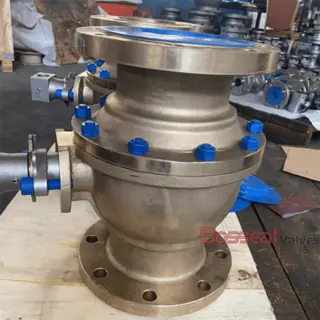

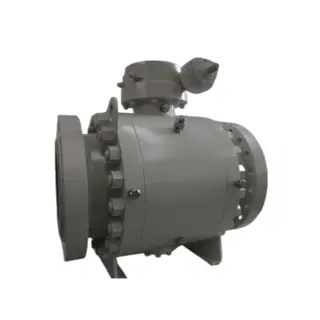

Similar Products
