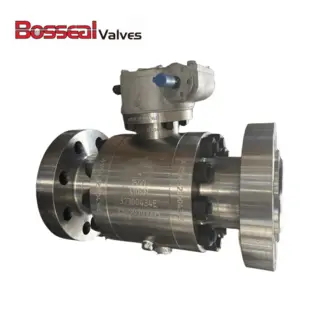

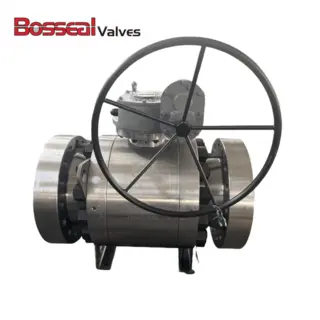

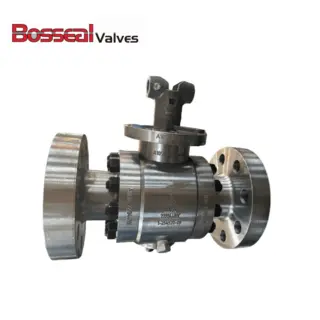

Side Entry Ball Valve, A105N, 12 Inch, CL1500, API 6D, RTJ

Key Specifications / Features

Model no. : 1811162

Looking for a reliable Side Entry Ball Valve Supplier? We offer a premium 12-inch, 1500 LB valve with specifications including DN300, PN250, API 6D, and BS 5351 standards. Featuring Trunnion Trunnion-mounted design, DEVLON Seat, and constructed with ASTM A105N and A350 LF2 materials, our valve ensures durability and performance. Equipped with Gear operation and RTJ End, it meets industry standards seamlessly.


Detail Information

API 6D Trunnion Mounted Ball Valve, 3pcs body, Forged, Side Entry, Bolted Bonnet, 12 INCH, 1500 LB, RTJ, DEVLON Seat, Gear Operation

Valve Description:
1811162 Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Structure: 3pcs body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 12 Inch
Nominal class: 1500 LB
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ Flanged
Operation: Gear
Body Material: ASTM A105N or A350 LF2
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Seat Insert: DEVLON
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission (Optional), DIB (Optional)

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -26℃ - +150℃
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
