ключевые характеристики и преимущества производительности двухпластинного обратного клапана

Sep 23, 2024


On this page

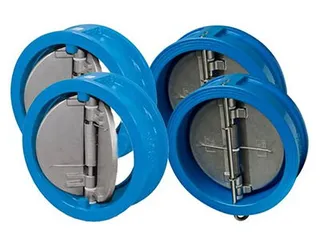

The dual-plate check valve is a high-performance, non-slam valve widely used in fluid control systems. Its unique design and structural features excel in preventing backflow, reducing leakage, and enhancing system efficiency. This article delves into the structural characteristics, performance advantages, design and material benefits, installation and maintenance convenience, and economic aspects of the dual-plate check valve.

Structural Characteristics


The design of the dual-plate check valve incorporates several key elements that distinguish it from other check valves.

1. No-Clean Operation


This valve allows smooth operation without the need for cleaning, reducing maintenance frequency and time costs. This feature is particularly suitable for wastewater treatment or fluids containing solid particles.

2. Independent Spring Structure


Most standard valves are equipped with independent spring mechanisms, enabling each plate to respond independently. This enhances the valve's flexibility and reliability, allowing quick response under varying flow rates and pressures.

3. Independent Plate Support System


This system improves the stability of the plates and reduces wear under high-pressure or high-flow conditions, ensuring long-term reliable use. The effectiveness of the independent support system can significantly reduce the failure rate of the valve under extreme conditions.

4. Multiple Installation Options


The dual-plate check valve can be designed with lug-style, double-flange, and extended body configurations to accommodate various installation needs and spatial constraints. This flexibility makes it suitable for diverse industrial environments.

Performance Advantages


Compared to single-plate check valves, dual-plate check valves offer notable performance advantages.

1. Thorough Sealing


The dual-plate design effectively prevents leakage, ensuring system integrity and safety, especially in applications where backflow prevention is critical, such as pump stations and chemical plants.

2. Broad Applicability


This valve performs exceptionally well in high-flow and high-pressure pipeline systems, making it ideal for industries such as oil, gas, chemicals, and pharmaceuticals. Its construction allows it to withstand harsh operating conditions, ensuring efficient fluid system performance.

3. Quick Response Capability


Under high-speed or large-volume conditions, the dual-plate check valve can close rapidly, mitigating negative impacts on the pipeline system and maintaining fluid continuity and stability. This is especially crucial in systems that frequently switch flow directions.

4. Reduced Water Hammer Effect


Its unique design effectively minimizes water hammer phenomena, reducing impact on pipelines, protecting system equipment, and extending service life. Decreasing water hammer not only enhances equipment safety but also lowers maintenance costs.

Design and Material Advantages


The design of the dual-plate check valve utilizes two spring-loaded D-shaped plates mounted on a rib shaft across the valve bore.

1. Shortened Center of Gravity Movement


This design reduces the center of gravity movement of the plates, ensuring smooth operation during opening and closing, which minimizes impact and wear.

2. Lightweight Plates


Compared to conventional single-plate swing check valves of the same size, the dual-plate check valve has plates that are 50% lighter. This reduction in weight enhances the valve's response speed and lowers the requirements for supporting structures, making it more reliable during high-frequency operations.

3. Rapid Spring Load Response


The spring structure of the valve enables a quick reaction to backflow, improving the overall system response efficiency. This rapid response is critical in emergencies, helping to avoid potential equipment damage.

Installation and Maintenance


The dual-plate check valve meets API 594 standards, with its face-to-face dimension being only 1/4 of that of conventional valves, and its weight reduced to 15%–20%.

1. Easy Installation


The lightweight design facilitates easier installation, requiring only one set of flange connection bolts, thus saving on installation costs and labor. This design is particularly important in compact spaces, effectively reducing installation difficulties.

2. Reduced Maintenance Costs


Thanks to its unique design, the complexity and frequency of routine maintenance are significantly lowered, resulting in decreased long-term operational costs. The valve's durability and low failure rate mean it can operate for extended periods without the need for downtime for maintenance, further reducing production costs.

Economic Benefits


The dual-plate check valve not only offers functional advantages but also presents significant economic benefits.

1. Lower Total Ownership Costs


Due to its efficient design and low maintenance requirements, the total ownership cost of the dual-plate check valve is substantially lower than that of traditional swing check valves. In the long run, this valve can save companies considerable operational expenses.

2. Versatile Applications


This valve performs exceptionally well in various industrial applications, widely used in oil, chemicals, water treatment, and food and beverage sectors, meeting different fluid control needs. Its flexibility and reliability make it an ideal choice for many scenarios.

Conclusion


In summary, the dual-plate check valve stands out as a preferred type of check valve in numerous industrial applications, owing to its unique design, exceptional performance, and lower maintenance costs. In environments with high flow rates and pressures, and where leakage prevention is paramount, the dual-plate check valve provides a reliable solution. Its role in ensuring the safe and efficient operation of fluid systems makes it a vital component in modern industry, key to enhancing overall system efficiency and economic viability.
