Химические и механические требования к углеродистой стали. ASTM A216 WCB
Jan 21, 2024

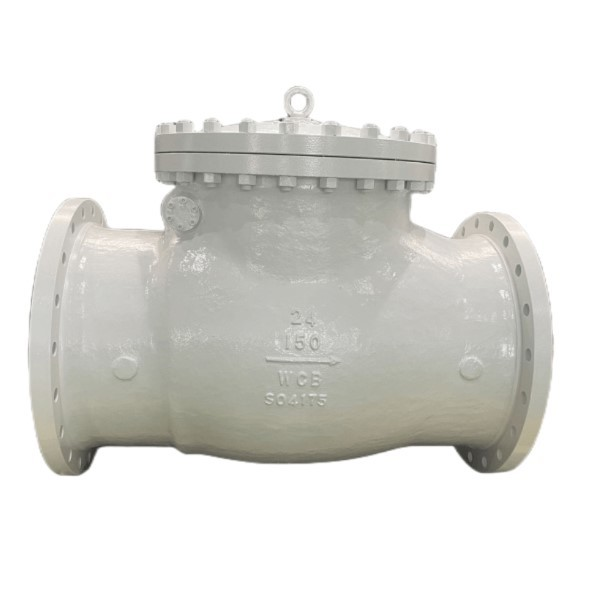

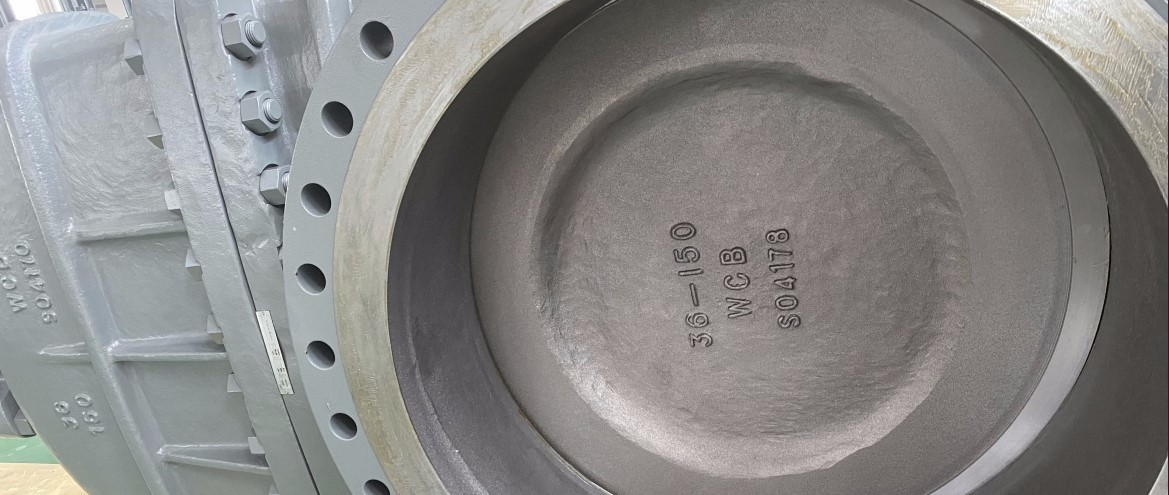

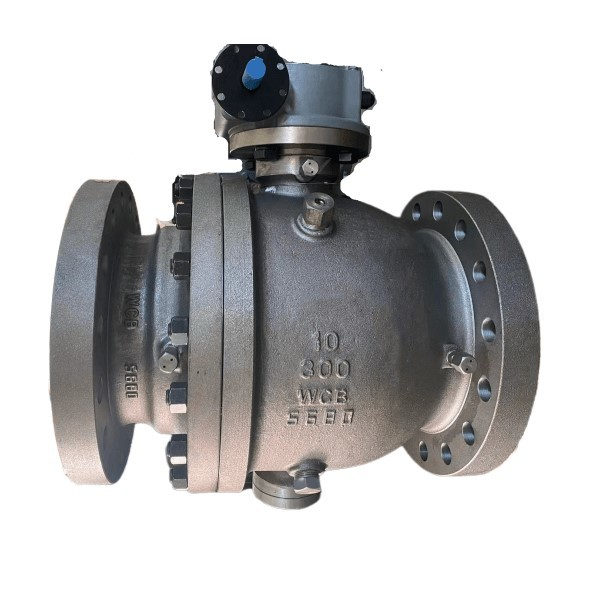

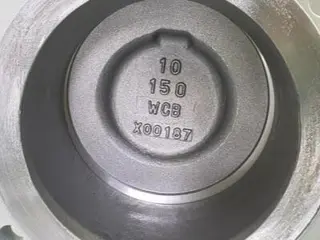

Для клапанов из углеродистой стали WCB ASTM A216 чаще всего используется для литья подложки корпуса и крышки клапана, а также других несущих деталей.
химические требования
1. All values are maximums.
2. For lower maximum sulfur content, see Supplementary Requirement S52
3. Specified Residual Elements- Except when Supplementary Requirement S50 is specified, the total content of these elements is 1.00 % maximum.
4. For each reduction of 0.01 % below the specified maximum carbon content, an increase of 0.04% manganese above the specified maximum will be permitted up to a maximum of 1.10 % for WCA.1.28 % for WCB and 1.40 % for WCC
Tensile Requirements
The equivalent material in forged type is ASTM A105N(refer to the standard accordingly).
Bosseal Valve is an experienced valve manufacturer of high-quality WCB casting valves, for any technical or commercial support please consider our teams at [email protected]
химические требования
| Element % | ||||||||||
| Material Grade | C | Mn | P | SB | Si | NiC | CrC | MoC | CuC | VC |
| WCB D J03002 |
0.30 | 1.00 | 0.035 | 0.035 | 0.60 | 0.50 | 0.50 | 0.20 | 0.30 | 0.03 |
1. All values are maximums.
2. For lower maximum sulfur content, see Supplementary Requirement S52
3. Specified Residual Elements- Except when Supplementary Requirement S50 is specified, the total content of these elements is 1.00 % maximum.
4. For each reduction of 0.01 % below the specified maximum carbon content, an increase of 0.04% manganese above the specified maximum will be permitted up to a maximum of 1.10 % for WCA.1.28 % for WCB and 1.40 % for WCC
Tensile Requirements
| Material Grade | Tensile Strength, ksi (MPa) | Yield Strength, ksi (MPa) | Elongation in 2 in.(50mm), % | Reduction of Area, % |
| WCB | 70-95 (485-655) |
36 (250) |
22 | 35 |
The equivalent material in forged type is ASTM A105N(refer to the standard accordingly).
Bosseal Valve is an experienced valve manufacturer of high-quality WCB casting valves, for any technical or commercial support please consider our teams at [email protected]
