Приклеивание шарового клапана: причины, диагноз и решения
Sep 14, 2024
On this page

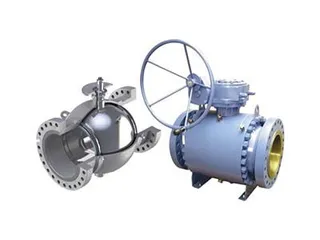

Ball valves are crucial control devices in industrial pipeline systems, widely used for fluid isolation and regulation. However, over time, ball valves can experience sticking issues, which prevent proper operation and impact the efficiency and safety of the entire system. To ensure the reliability and stability of ball valves in operation, it is essential to understand the main causes of sticking, accurate diagnostic methods, and effective remedies. This article explores the causes, diagnostic steps, and solutions for ball valve sticking issues.
Main Causes of Ball Valve Sticking
Ball valve sticking is typically caused by several core issues, including gearbox damage, seal seat blockage, and excessive pressure differential within the system. Each cause can affect the valve's normal operation to varying degrees, so these factors must be systematically considered when diagnosing and resolving ball valve sticking problems.1. Gearbox Issues
Corrosion and Damage: Corrosion, bearing damage, or foreign object obstruction inside the gearbox can prevent the ball valve from operating correctly. Corrosion may cause wear on the gears, affecting transmission efficiency, while bearing damage may lead to rough rotation.
Foreign Object Obstruction: Foreign objects may get lodged inside the gearbox or transmission mechanism, obstructing normal operation and causing valve sticking.
2. Seal Seat Blockage
Seal Grease Hardening: Over time, seal grease may harden, losing its lubrication function and causing seal seat blockage.
Contaminants: Dirt or debris may get trapped in the seal seat gaps, impeding normal movement and causing blockage.
Spring Failure: If the seal seat spring is malfunctioning, it can lead to insufficient or excessive pressure on the seal seat, affecting sealing performance and causing blockage.
3. Excessive Pressure Differential
Pressure Differential between Valve Chamber and Main Line: When the pressure differential between the valve chamber and the main line is too high, the seal seat may excessively press against the ball surface, increasing operating torque and leading to valve sticking. This situation typically occurs when there are significant pressure fluctuations or poor pipeline design.
Diagnostic Methods
Accurate diagnostic methods are crucial to ensure effective identification and resolution of ball valve sticking issues. Here are systematic diagnostic steps to help maintenance personnel quickly locate the problem.
1. Check the Gearbox
Open the gearbox and inspect for obvious corrosion, bearing damage, or foreign objects. Examine gear wear and determine if lubrication or part replacement is necessary.
2. Purge Operation
Perform a purge operation on the ball valve and observe if there is any air pressure in the valve chamber. If there is pressure, it may indicate seal seat blockage. Clean the valve interior and check the seal seat status to ensure normal operation. If no pressure is observed after purging, it could be due to excessive pressure differential between the valve chamber and the main line.
3. Pressure Balancing
Attach a purge nozzle and injection device to the ball valve's purge nozzle to balance the pressure differential between the valve chamber and the main line. This can help alleviate sticking issues caused by excessive pressure differential, ensuring normal valve operation.
Troubleshooting Methods
After accurately diagnosing the cause of ball valve sticking, the next crucial step is to implement effective troubleshooting methods. Here are specific steps to address ball valve sticking issues and restore normal operation while enhancing long-term stability.
Regular Inspections: Open the gearbox annually to check the lubrication, anti-corrosion treatment, and integrity of components. Clean the gearbox of any water or foreign objects to ensure smooth operation.
Lubrication and Replacement: Regularly replace and replenish fresh grease. Inspect and replace wear-prone components such as bearings to ensure proper gearbox function.
Cleaning Solution Soak: Inject a cleaning solution to soak the ball valve. The soaking time depends on the valve's grease condition. The cleaning solution helps dissolve hardened seal grease and debris.
Purge Operation: Remove contaminants and debris through purging, eliminating seal seat blockage. If the valve still does not operate correctly after repeated cleaning and purging, disassembly may be needed for a detailed inspection and repair.
Achieve Pressure Balance: After cleaning, inspect the sealing surfaces. If internal leakage is present, achieving pressure balance between the valve chamber and the main line may be necessary. Using a purge nozzle and injection device can help balance the pressure and resolve sticking issues.
Forceful operation of a valve that is not functioning correctly can have the following risks.
Gearbox Damage: Forceful operation may cause excessive stress on the gearbox, leading to cracks or deformation of internal gears and other components, thereby affecting normal valve operation.
Seal Surface Damage: Excessive force may severely scratch the sealing surface, causing significant internal leakage and potentially rendering the valve unusable.
Personnel Injury: Using force rods or multiple operators simultaneously can lead to breakage of the force rod or other operational errors, resulting in injuries to operators.
To avoid equipment damage, personnel injury, and economic loss, it is essential to refrain from using force rods or multiple operators for a malfunctioning valve. Instead, carefully analyze the fault, apply appropriate methods for resolution and repair, and ensure proper equipment operation and system stability.
In summary, addressing ball valve sticking issues relies not only on a thorough understanding of internal problems but also on systematic methods of diagnosis and maintenance. Regular preventive maintenance, cleaning, and pressure balancing measures can effectively prevent and resolve sticking issues, ensuring proper valve operation. Avoiding forceful methods to prevent equipment damage and injury further highlights the importance of meticulous and professional handling. Mastering these troubleshooting techniques will not only extend the ball valve's service life but also enhance the overall system's stability, providing more reliable support for industrial production.
1. Preventive Maintenance
Regular Inspections: Open the gearbox annually to check the lubrication, anti-corrosion treatment, and integrity of components. Clean the gearbox of any water or foreign objects to ensure smooth operation.
Lubrication and Replacement: Regularly replace and replenish fresh grease. Inspect and replace wear-prone components such as bearings to ensure proper gearbox function.
2. Cleaning and Maintenance
Cleaning Solution Soak: Inject a cleaning solution to soak the ball valve. The soaking time depends on the valve's grease condition. The cleaning solution helps dissolve hardened seal grease and debris.
Purge Operation: Remove contaminants and debris through purging, eliminating seal seat blockage. If the valve still does not operate correctly after repeated cleaning and purging, disassembly may be needed for a detailed inspection and repair.
3. Address Internal Leakage
Achieve Pressure Balance: After cleaning, inspect the sealing surfaces. If internal leakage is present, achieving pressure balance between the valve chamber and the main line may be necessary. Using a purge nozzle and injection device can help balance the pressure and resolve sticking issues.
Risks of Forceful Operation
Forceful operation of a valve that is not functioning correctly can have the following risks.
Gearbox Damage: Forceful operation may cause excessive stress on the gearbox, leading to cracks or deformation of internal gears and other components, thereby affecting normal valve operation.
Seal Surface Damage: Excessive force may severely scratch the sealing surface, causing significant internal leakage and potentially rendering the valve unusable.
Personnel Injury: Using force rods or multiple operators simultaneously can lead to breakage of the force rod or other operational errors, resulting in injuries to operators.
To avoid equipment damage, personnel injury, and economic loss, it is essential to refrain from using force rods or multiple operators for a malfunctioning valve. Instead, carefully analyze the fault, apply appropriate methods for resolution and repair, and ensure proper equipment operation and system stability.
In summary, addressing ball valve sticking issues relies not only on a thorough understanding of internal problems but also on systematic methods of diagnosis and maintenance. Regular preventive maintenance, cleaning, and pressure balancing measures can effectively prevent and resolve sticking issues, ensuring proper valve operation. Avoiding forceful methods to prevent equipment damage and injury further highlights the importance of meticulous and professional handling. Mastering these troubleshooting techniques will not only extend the ball valve's service life but also enhance the overall system's stability, providing more reliable support for industrial production.
