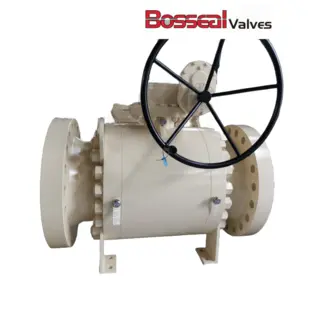

RTJ Flanged Ball Valve, API 6D, 8 Inch, 900 LB, ASTM A105N

Key Specifications / Features

Model no. : 8BSP9JA105N

Find premium RTJ Flanged Trunnion Ball Valve: API 6D compliant, 8-inch size, 900 LB pressure rating, DN200, and PN150 specifications. Crafted with ASTM A105N Body and F51 Trim, featuring Bolted Bonnet, DIB-1 design, Three Pieces construction, and Gear Operation for optimal performance.


Detail Information

Trunnion Mounted Ball Valve, API 6D, 8 inch, 900 LB, RTJ, A105N Body, F51 Trim, PEEK Seat, DPE Seats (DIB-1), Gear Operation

Valve Description:
1811068 Trunnion Mounted Ball Valve 8BSP9JA105N
Design Standard: API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, DIB-1
Nominal size: 8 Inch
Nominal class: 900 LB
Bore Type: Full Bore
End Connection: RTJ Flanged
Operation: Gear Operation
Body Material: ASTM A105N
Trim Material: ASTM A182 F51, PEEK
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: DIB-1, Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -46℃ - +150℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
