RPTFE Seated Lug Butterfly Valve, API 609, CF8, 300 LB, 48IN

Name: RPTFE Seated Lug Butterfly Valve, API 609, CF8, 300 LB, 48IN
SKU: 1862242
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : 1862242

As a leading provider of API 609 butterfly valves in China, we offer high-performance solutions that adhere to EN 593 standards. Our 48-inch valves feature a durable ASTM A351 CF8 body and a double eccentric design, ensuring reliable operation in demanding environments. Equipped with a 17-4PH stem, RPTFE seat, and lug end, these valves are rated for 300 LB. They are designed for easy lever operation, providing smooth control and long-lasting performance for various industrial applications.

Request a quote

Tags:

Double Offset Butterfly Valves

ASTM A351 CF8 Butterfly Valve

Lug Butterfly Valve

Detail Information

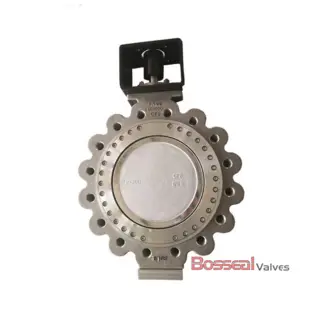

Double Eccentric Butterfly Valve, 48 Inch/DN1200, 300 LB, CF8 Body, Gear Operation.

Valve Description

1862242 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Body Material: ASTM A351 CF8, ASTM A890 5A, ASTM A351 CF8M, Titanium, ASTM A216 WCB, ASTM A890 4A, ASTM B148 C95800.
Nominal Size: 48 Inch, DN1200
Structure: Double Offset, Double Eccentric
Nominal Class: 300 LBS, PN50
Seat Type: Soft Seat
Face to Face: API 609, EN 593
Operation: Lever
Seat: RPTFE, PPL
End Connection: Lug
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium

Key Features

1. Long lifespan for high-frequency operation (up to a million cycles).
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
