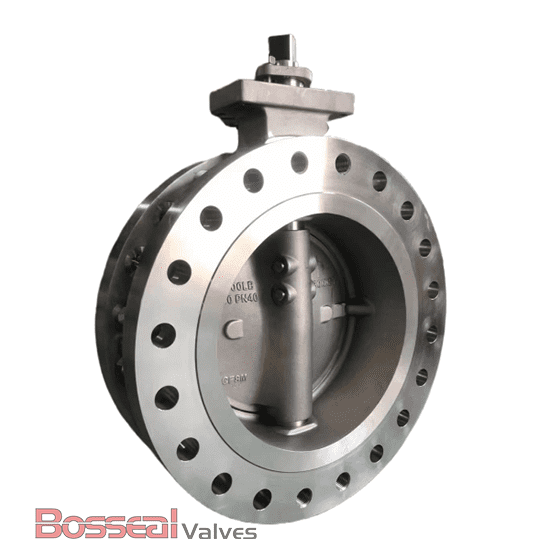

RPTFE Seated Butterfly Valves, CL150, 6 IN, EN 593, A351 CF8

Key Specifications / Features

Model no. : 1862331

We provide double offset butterfly valves with soft RPTFE seats, designed to meet API 609 Category B standards. Constructed from A351 CF8 stainless steel, our 6-inch (DN150) valves are rated for Class 150 LBS and feature a robust Monel K500 stem. These valves deliver dependable sealing and smooth operation, making them suitable for diverse flow control applications. As a leading butterfly valve manufacturer in China, we are committed to upholding the highest industry standards for performance and durability in all our products.

Detail Information

API 609 Cat B Double Offset Butterfly Valves, 6 Inch/DN150, Soft Seated, Gear Operation.

Valve Description

1862331 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Nominal Size: 6 Inch, DN150
Nominal Class: 150 LBS, PN16
Seat Type: Soft Seat
Operation: Gear
Structure: Double Offset, Double Eccentric
Body Material: ASTM A351 CF8, ASTM A890 4A, Titanium, ASTM A351 CF8M, ASTM B148 C95800, ASTM A890 5A, ASTM A216 WCB.
Seat: RPTFE, PPL
End Connection: Lug
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Working Temperature: -26°C to +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Bosseal Valve advantages: 0 Leakage, low Torque, Long working life, Low Emission, Bi-direction and Fire Safe.
