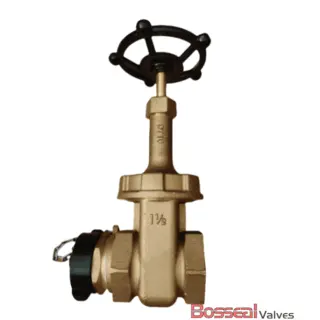

Rising Stem Bronze Gate Valves, C83600, 1-1/2 IN, CL 150 LB

Key Specifications / Features

Model no. : 1876016

As a trusted bronze gate valve provider from China, we offer high-quality valves built to MSS SP-80 standards with an ASTM B62 C83600 body. Our 1-1/2 inch, Class 150 LB gate valves feature a threaded bonnet and the option of a rising or non-rising stem. Designed for full open and close service, these multi-turn valves ensure reliable isolation in pipeline applications. The renewable solid wedge provides enhanced durability, making it ideal for long-lasting performance in various industrial settings.

Detail Information

MSS SP-80 Bronze Gate Valves, 1-1/2 Inch/DN40, Class 150 LB, Threaded Bonnet.

Valve Description:
1876016 Gate Valve
Bore Type: Standard Bore
Design Standard: MSS SP-80
Body Material: ASTM B62 C83600
Nominal Size: 1-1/2 Inch, DN40
Nominal Class: Class 150 LB, PN16
Trim Material: ASTM B62 C83600
Operation: Handwheel
Face to Face: Manufacturer Standard
Test and Inspection: MSS SP-80
Structure: Threaded, Union Bonnet
End Connection: Threaded ASME B1.20.1

Key Features:
1. Renewable solid wedges for enhanced durability.
2. Integral seats for improved sealing performance.
3. High-tensile bronze alloy stems for strength and reliability.
4. Each valve undergoes shell and seat pressure testing by MSS SP-80 industry standards.
5. Options for both rising and non-rising stems are available.

Product Range:
Body Material: Bronze ASTM B62 C83600
Normal Diameter: 1/4-3 Inch (DN6 – DN80)
Pressure Range: Class 125 LB, 150 LB, 200 LB, 300 LB
Operation: Handwheel
Working Temperature: -20°C to +150°C
End Connection: Threaded
