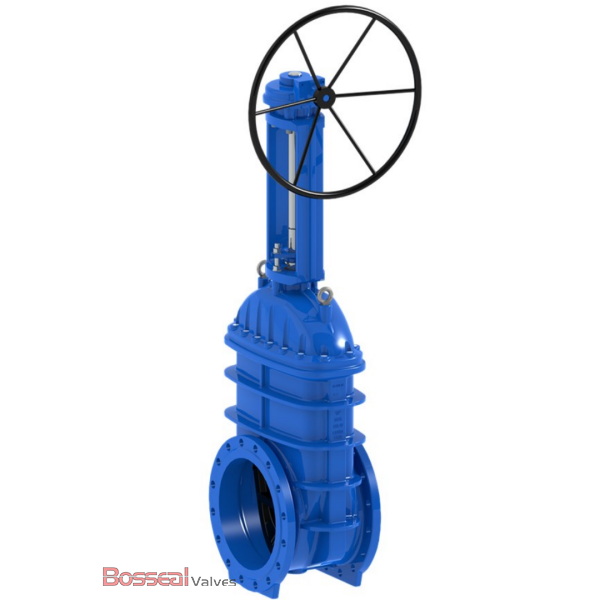

DIN 3352 Resilient
Gate Valve, DN400/16 Inch, PN15, Cast Iron Body, NBR/EPDM/Viton Seat.
Valve Description
1871020 Gate Valve
Design Standard: DIN 3352, BS 5163, AWWA
Structure: Resilient Seat, Rising Stem
Nominal Size: DN400, 16 Inch
Nominal Class: PN15
Body Material: Cast Iron, Ductile Iron-GGG40, GGG50, ASTM A536
Trim Material: Cast Iron, Ductile Iron-GGG40, GGG50, ASTM A536
Bore Type: Standard Bore
Operation: Handwheel, Gear
Face to Face: EN558-3, DIN 3352-F4, DIN 3352-F5
Test and Inspection: EN 12266-1, DIN 3230
End Connection: Flanged
Key Features
1. Enhanced corrosion resistance with Fusion Bonded Epoxy Coating on both internal and external surfaces
2. Secure and reliable operation with a square cap design
3. Compatibility with Post Indicator Valves (PIV) for added functionality
4. Optional metal seat for superior sealing performance
5. Compliance with WRAS (Water Regulations Advisory Scheme) and AWWA (American Water Works Association) standards
Product Range
| Body Material: |
Cast Iron, Ductile Iron |
| Normal Diameter: |
1/2 Inch - 80 Inch (DN15–DN2000) |
| Pressure Range: |
PN10, PN16 |
| Working Temperature: |
-29°C - +80°C |
| Suitable Service: |
Water |
| End Connections: |
Flanged(FF, RF, RTJ), Socket Weld(SW), Threaded(NPT, BSP), Butt Weld(BW) |
| Bonnet Types: |
Bolted Bonnet, Pressure Bonnet, Welded Bonnet, Bellow Seal |
