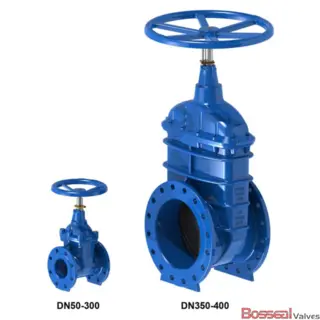

Resilient Gate Valve, DIN 3352, BS 5163, DN250, PN15, GGG50

Key Specifications / Features

Model no. : 1871017

As a premier fabricator of DN250 resilient gate valves in China, we deliver products that adhere to DIN 3352 and BS 5163 standards. Our DN250 (10-inch) valves are rated for PN15 pressure and feature a rising stem for easy operation. Equipped with a resilient seat available in EPDM, NBR, or Viton materials, these valves ensure a secure seal in various conditions. They come with flanged ends for straightforward installation and can be operated using either a handwheel or gear mechanism, offering flexibility for diverse applications.

Detail Information

PN15 Resilient Gate Valve, DIN 3352, BS 5163, Cast Iron Body, DN250, PN15, Flanged End.

Valve Description

1871017 Gate Valve
Design Standard: DIN 3352, BS 5163, AWWA
Structure: Resilient Seat, Rising Stem
Nominal Size: DN250, 10 Inch
Nominal Class: PN15
Body Material: Cast Iron, Ductile Iron-GGG40, GGG50, ASTM A536
Bore Type: Standard Bore
Operation: Handwheel, Gear
Trim Material: Cast Iron, Ductile Iron-GGG40, GGG50, ASTM A536
Face to Face: EN558-3, DIN 3352-F4, DIN 3352-F5
Test and Inspection: EN 12266-1, DIN 3230
End Connection: Flanged


Key Features

1. Enhanced corrosion resistance with Fusion Bonded Epoxy Coating on both internal and external surfaces
2. Secure and reliable operation with a square cap design
3. Compatibility with Post Indicator Valves (PIV) for added functionality
4. Optional metal seat for superior sealing performance
5. Compliance with WRAS (Water Regulations Advisory Scheme) and AWWA (American Water Works Association) standards

Product Range

Body Material: Cast Iron, Ductile Iron
Normal Diameter: 1/2 Inch - 80 Inch (DN15–DN2000)
Pressure Range: PN10, PN16
Working Temperature: -29°C - +80°C
Suitable Service: Water
End Connections: Flanged(FF, RF, RTJ), Socket Weld(SW), Threaded(NPT, BSP), Butt Weld(BW) .
Bonnet Types: Bolted Bonnet, Pressure Bonnet, Welded Bonnet, Bellow Seal
