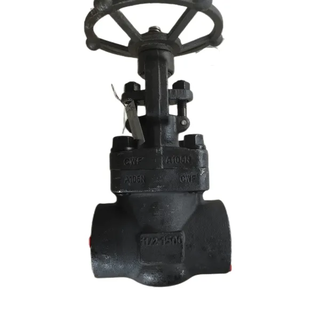

Regular Bore Forged Gate Valve, A105, 1-1/2 IN, 1500 LB, SW

Key Specifications / Features

Model no. : 1.5G15SA10512

Looking for a reliable supplier of forged gate valves? Our products meet the industry standards including API 602, ASME B16.34, and ASTM A105N. This particular valve is a regular bore type with a size of 1-1/2 inches and a class rating of 1500 LB. It is also available in DN40 and PN250 specifications. Designed with a socket weld end, this gate valve offers convenient handwheel operation. Trust us for high-quality and compliant valve solutions.


Detail Information

A105 Body 316 Trim Forged Gate Valve, API 602, 1-1/2 INCH, 1500 LB, SW,  Handwheel

Valve Description:
1851016 API 602 Forged Gate Valve 1.5G15SA10512
Design Standard: API 602, ASME B16.34
Structure: Bolted Bonnet, OS & Y
Nominal size: 1-1/2 Inch
Nominal class: 1500 LB
Bore: Regular Bore
End Connection: SW-Socket Weld End
Operation: Handwheel
Body Material: ASTM A105N
Trim Material: SS 316 + STL.6
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid wedge, Adjustable Packing Gland

Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 800-2500LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +400℃
Operation: Handwheel
