Key Specifications / Features
Our factory specializes in manufacturing high-quality aluminum bronze ball valves, designed to meet API 6D and ASME B16.34 standards. Crafted from durable C95800 aluminum bronze, this 32-inch (DN800) valve is built for reliable performance in demanding environments. It features a Class 150 LB (PN20) pressure rating, a reduced bore design for optimized flow control, and RF flanged ends for secure installation. Engineered for corrosion resistance and longevity, our aluminum bronze ball valves are ideal for marine, offshore, and industrial applications.
Valve Description:

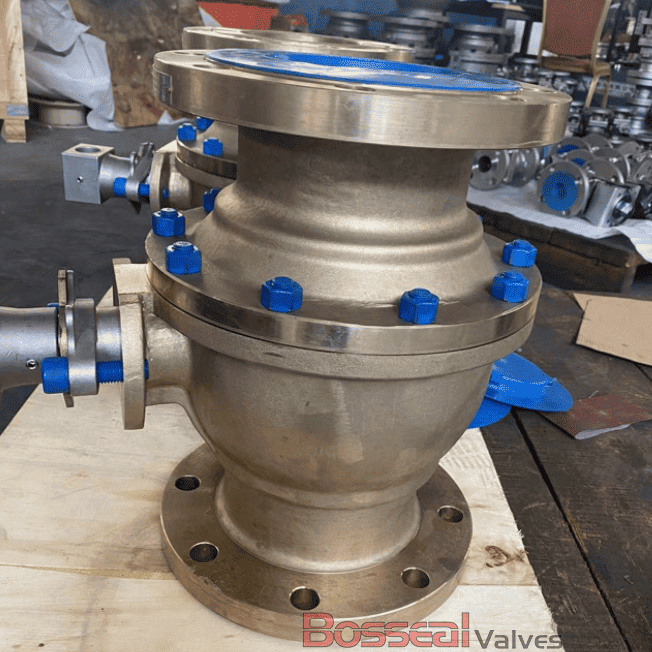

187301017 Aluminium Bronze Ball Valve
Design Standard: API 6D, BS 5351, ASME B16.34
Structure: 2pcs Body, Side Entry, Bolted Bonnet, Soft Seat
Nominal Size: 32 Inch, DN800
Nominal Class: Class 150 LB, PN16, PN20
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800, ASTM B150 C63200, Monel
Bore Type: Full Bore or Reduced Bore
End Connection: FF or RF Flanged
Operation: Gear
Seat Insert: RPTFE
Face to Face: ASME B16.10
Test and Inspection: API 598, API 6D
Key Features: Double Block&Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency Sealant Injection, Low Emission(Optional), DIB (Optional), Aluminium Bronze for Sea Water Service.
Product Range:
Body Material: Aluminium Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
End Connection: Raised Face (RF), Flat Face (FF)
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
