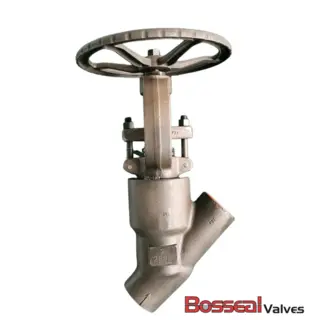

Pressure Seal Bonnet Y Globe Valve, 2IN, CL2680, A182 F11

Key Specifications / Features

Model no. : 2GLY26SF1105

Explore our premium Pressure Seal Bonnet Y Globe Valve, designed for optimal performance and durability. With a size of 2 inches and a pressure rating of 2680 pounds, this valve, manufactured with ASTM A182 F11 and ASTM A182 F6A + STL Trim 5 materials, ensures reliability in high-pressure environments. Featuring an OS & Y design, SW connection, and Handwheel operation, it offers seamless functionality. Trust in its Plug Disc for efficient flow control. Upgrade your industrial operations with this top-quality valve solution.


Detail Information

Forged Y Pattern Globe Valve, API 602, 2 INCH, 2680 LB, SW End, F11 Body, Trim 5, Handwheel

Valve Description:
1852034 API 602 Forged Globe Valve 2GLY26SF1105
Design Standard: API 602, ASME B16.34
Structure: Pressure Seal Bonnet, OS & Y, Y pattern
Nominal size: 2 Inch
Nominal class: 2680 LB
Bore: Regular Bore
End Connection: SW
Operation: Handwheel
Body Material: ASTM A182 F11
Trim Material: F6A+STL, No.5
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid disc, Adjustable Packing Gland, plug disc (parabola disc available), for power plant, steam, high temperature

Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 800-2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +500℃
Operation: Handwheel
