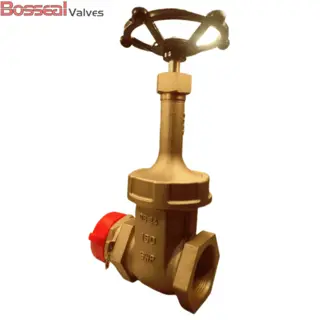

Non-Rising Stem Gate Valve, 3/4 Inch, 125 LB, Bronze C83600

Key Specifications / Features

Model no. : 1876004

As a prominent Bronze C83600 Gate Valve Supplier from China, we provide valves that meet MSS SP-80 standards. Our 3/4 inch (DN20) gate valves are available in Class 125 LB to Class 300 LB ratings, featuring a threaded union bonnet for secure installation and easy maintenance. Designed for reliable performance, these valves are operated with a handwheel, ensuring precise control in various pipeline applications. The robust bronze construction offers excellent corrosion resistance, making our gate valves suitable for a range of industrial environments. Trust us for durable and efficient gate valve solutions tailored to your specifications.

Detail Information

Non-Rising Stem Bronze Gate Valve, 3/4 IN, 125 LB, MSS SP-80, Standard Bore.

Valve Description

1876004 Gate Valve
Bore Type: Standard Bore
Design Standard: MSS SP-80
Nominal Size: 3/4 Inch, DN20
Nominal Class: Class 125 LB
Body Material: ASTM B62 C83600
Operation: Handwheel
Face to Face: Manufacturer Standard
Test and Inspection: MSS SP-80
Structure: Threaded, Union Bonnet
Trim Material: ASTM B62 C83600
End Connection: Threaded ASME B1.20.1

Key Features

1. Durable renewable solid wedges.
2. Integral seats for better sealing.
3. High-tensile bronze alloy stems for strength.
4. Shell and seat pressure testing per MSS SP-80 standards.
5. Options for rising and non-rising stems.

Product Range

Normal Diameter: 1/4-3 Inch (DN6 – DN80)
Pressure Range: Class 125 LB - Class 300 LB
Body Material: Bronze ASTM B62 C83600
Working Temperature: -20°C to +150°C
Operation: Handwheel
End Connection: Threaded


Drawing for Bronze Gate Valve
