Solutions for Butterfly Valve Sealing Challenges
Mar 01, 2024

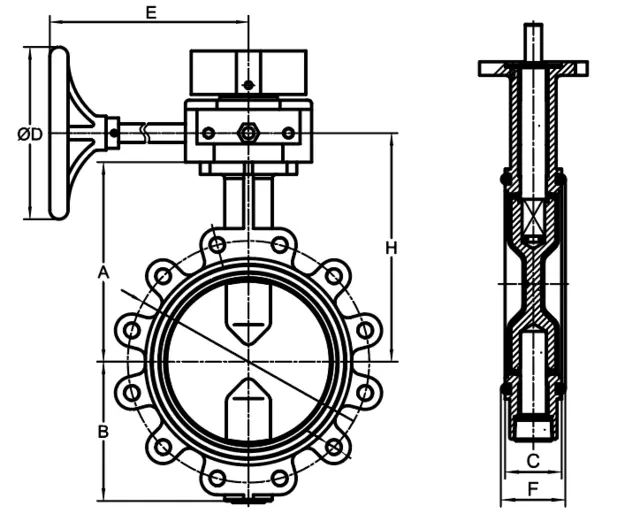

Sealing issues with butterfly valves have perpetually posed a challenge in industrial production and engineering applications. These issues not only affect equipment performance and efficiency but also entail safety risks and environmental pollution. Therefore, comprehensively understanding and resolving various types of butterfly valve leakage problems is crucial for maintaining smooth equipment operation. Below are detailed solutions for different types of leakage problems.
Sealing Leakage Issues
Ensuring the proper sealing of butterfly valves is essential for efficient operation and preventing leakage. Various factors can contribute to sealing issues, ranging from foreign object entrapment to improper closure alignment and uneven flange bolt pressure. Let's examine some common challenges and their corresponding solutions:
1. Foreign Object Entrapment:
Issue Description: Butterfly plates or seals may trap foreign objects such as oil stains or fragments, leading to incomplete sealing.
Solution: Regularly clean the interior of the valve to ensure proper operation of butterfly plates and seals. Use cleaning agents to cleanse the valve's interior and periodically check for and remove any residues.
2. Improper Closure Alignment:
Issue Description: Improper positioning of butterfly plates or seals during closure can cause leakage.
Solution: Adjust the adjustment screws of the actuator to ensure that the butterfly plates or seals are correctly positioned when closed. This may require regular calibration and maintenance of the actuator.
3. Uneven Flange Bolt Pressure:
Issue Description: Uneven tightening or loosening of outlet flange bolts during installation can cause uneven stress, resulting in leakage.
Solution: Ensure even tightening of flange bolts and proper pressure on each bolt to ensure sealing performance. Additionally, check the flatness of the flange surface to ensure proper alignment with the sealing surface.
Issue Description: Butterfly plates or seals may trap foreign objects such as oil stains or fragments, leading to incomplete sealing.
Solution: Regularly clean the interior of the valve to ensure proper operation of butterfly plates and seals. Use cleaning agents to cleanse the valve's interior and periodically check for and remove any residues.
2. Improper Closure Alignment:
Issue Description: Improper positioning of butterfly plates or seals during closure can cause leakage.
Solution: Adjust the adjustment screws of the actuator to ensure that the butterfly plates or seals are correctly positioned when closed. This may require regular calibration and maintenance of the actuator.
3. Uneven Flange Bolt Pressure:
Issue Description: Uneven tightening or loosening of outlet flange bolts during installation can cause uneven stress, resulting in leakage.
Solution: Ensure even tightening of flange bolts and proper pressure on each bolt to ensure sealing performance. Additionally, check the flatness of the flange surface to ensure proper alignment with the sealing surface.
Other Leakage Issues
In addition to the aforementioned sealing challenges, butterfly valves may encounter a range of other significant leakage issues. These issues demand attention to maintain the optimal performance of the valves and prevent potential hazards. Let's explore some of these challenges and their corresponding solutions:
1. End Seal Deterioration:
Issue Description: Leakage at the ends of the valve may occur due to aging or wear of sealing gaskets.
Solution: Promptly replace sealing gaskets and ensure uniform tightening of the pipe flange bolts to improve sealing performance.
2. External Packing Leakage:
Issue Description: External leakage at packing areas may result from prolonged use, improper operation, or loose packing gland bolts.
Solution: Regularly inspect and replace packing materials, ensure uniform tightening of packing gland bolts, and avoid excessive force during operation to extend the lifespan of the packing.
3. Handle and Handwheel Damage:
Issue Description: Handles or handwheels may become damaged due to prolonged use or improper operation.
Solution: Use appropriate tools for operation, avoid using pipe wrenches or long levers, and regularly inspect and secure the fasteners of handles or handwheels to ensure secure connections.
4. Turbine or Gear Transmission Jamming:
Issue Description: Turbine or gear transmission may jam due to accumulated dirt or improper operation.
Solution: Regularly clean turbine or gear transmission devices to ensure smooth operation. Avoid applying excessive force when operating the valve to reduce wear on the transmission system.
5. Electric Installation Faults:
Issue Description: Electric valves may experience faults due to poor lubrication or motor malfunctions.
Solution: Regularly inspect and replace lubricating oil, ensure proper lubrication of electric valves, and maintain motors regularly to prevent moisture ingress or overload.
Issue Description: Leakage at the ends of the valve may occur due to aging or wear of sealing gaskets.
Solution: Promptly replace sealing gaskets and ensure uniform tightening of the pipe flange bolts to improve sealing performance.
2. External Packing Leakage:
Issue Description: External leakage at packing areas may result from prolonged use, improper operation, or loose packing gland bolts.
Solution: Regularly inspect and replace packing materials, ensure uniform tightening of packing gland bolts, and avoid excessive force during operation to extend the lifespan of the packing.
3. Handle and Handwheel Damage:
Issue Description: Handles or handwheels may become damaged due to prolonged use or improper operation.
Solution: Use appropriate tools for operation, avoid using pipe wrenches or long levers, and regularly inspect and secure the fasteners of handles or handwheels to ensure secure connections.
4. Turbine or Gear Transmission Jamming:
Issue Description: Turbine or gear transmission may jam due to accumulated dirt or improper operation.
Solution: Regularly clean turbine or gear transmission devices to ensure smooth operation. Avoid applying excessive force when operating the valve to reduce wear on the transmission system.
5. Electric Installation Faults:
Issue Description: Electric valves may experience faults due to poor lubrication or motor malfunctions.
Solution: Regularly inspect and replace lubricating oil, ensure proper lubrication of electric valves, and maintain motors regularly to prevent moisture ingress or overload.
In conclusion, implementing these maintenance and repair measures effectively prevents and resolves butterfly valve leakage, ensuring safe and stable equipment operation. This enhances production efficiency, reduces energy consumption and waste emissions, and extends equipment lifespan, leading to cost savings and improved competitiveness. Addressing butterfly valve leakage issues is crucial for promoting sustainable development and advancing industrial production and societal progress.
