MSS SP-80 Bronze Valves​

MSS SP-80 establishes requirements for bronze gate, globe, angle, and check valves in Class 125 LB (PN 20), 150 LB (PN 20), 200, 300 LB (PN 50) and 350 LB for threaded and solder ends and Class 150 LB (PN 20) and 300 LB (PN 50) for flanged ends.

These bronze valves are normally in threaded bonnet/union bonnet. End connections also include threaded type.

Design Features of Bronze Valves​

  1. Renewable solid wedges
  2. Integral seats
  3. High–Tensile bronze alloy stems
  4. Each valve is shell and seat pressure tested per industry standard MSS SP-80
  5. Rising stem/ non-rising stem available

About ASTM B62 UNS C83600

Common used material is ASTM B62 C83600, also known as UNS C83600, represents a premium leaded red brass copper casting alloy renowned for its exceptional properties. This gunmetal alloy boasts high tensile and compressive strength, hardness, ductility, and remarkable resistance to impact, making it an ideal choice for various applications. Its superior castability allows for the creation of consistent thin sections, perfect for intricate parts across different industries.

Chemical and Mechanical Property of UNS C83600

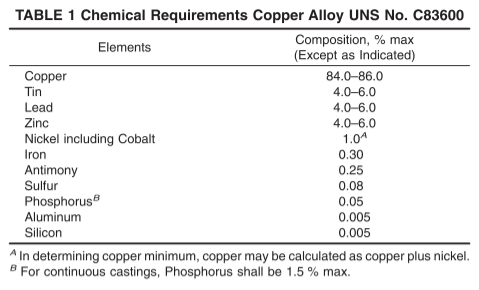

Chemical Requirements of UNS C83600

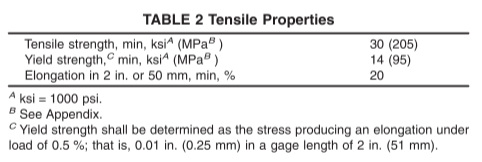

Tensile Properties of UNS C83600

MSS SP-80 Bronze Valve Products

Below is our MSS SP-80 Bronze valve product series.

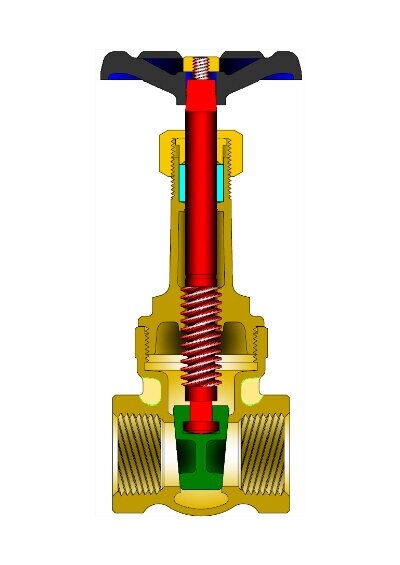

¼" to 3" Gate Valve (Rising Stem) Class 125-150 LB (Threaded Bonnet) 1/4 to 3 Inch Gate Valve (Rising Stem) Class 125-150 LB (Threaded Bonnet)

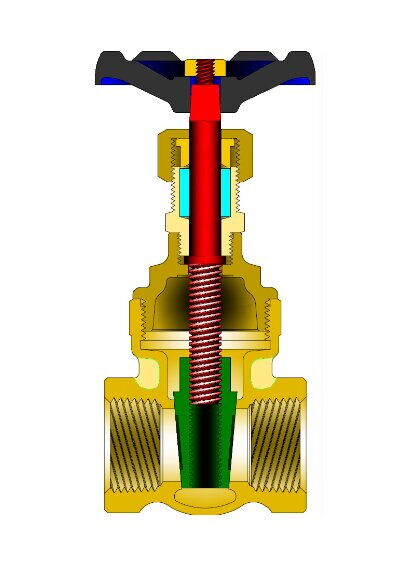

¼" to 3" Gate Valve (Non-Rising Stem) Class 125-150 LB (Threaded Bonnet) 1/4 to 3 Inch Gate Valve (Non-Rising Stem) Class 125-150 LB (Threaded Bonnet)

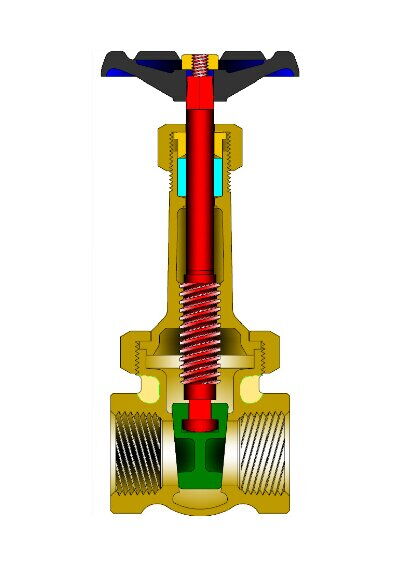

¼" to 3" Gate Valve (Rising Stem) Class 125-150 LB (Union Bonnet) 1/4 to 3 Inch Gate Valve (Rising Stem) Class 125-150 LB (Union Bonnet)

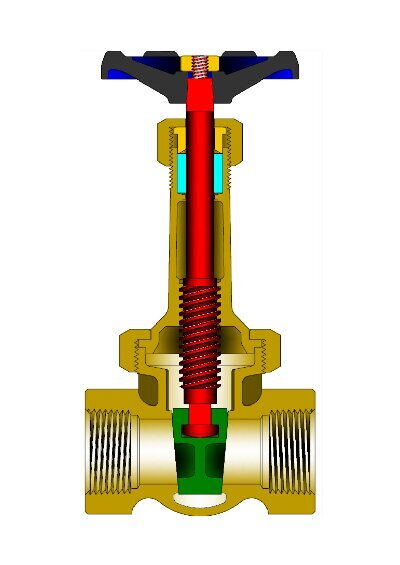

¼" to 3" Gate Valve (Rising Stem) Class 200-300 LB (Union Bonnet) 1/4 to 3 Inch Gate Valve (Rising Stem) Class 200-300 LB (Union Bonnet)

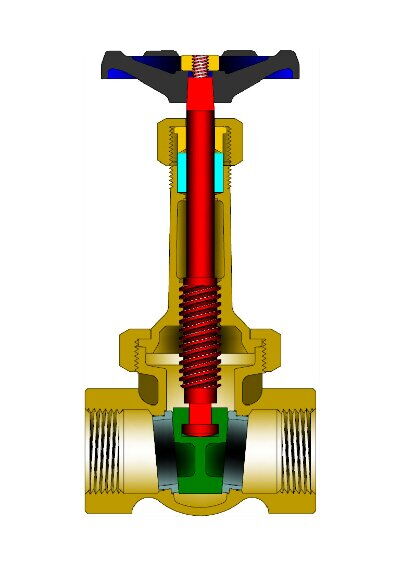

⅜" to 3" Gate Valve (Rising Stem, Rolled-In Seat Rings) Class 200-300 LB (Union Bonnet) 3/8 to 3 Inch Gate Valve (Rising Stem, Rolled-In Seat Rings) Class 200-300 LB (Union Bonnet)

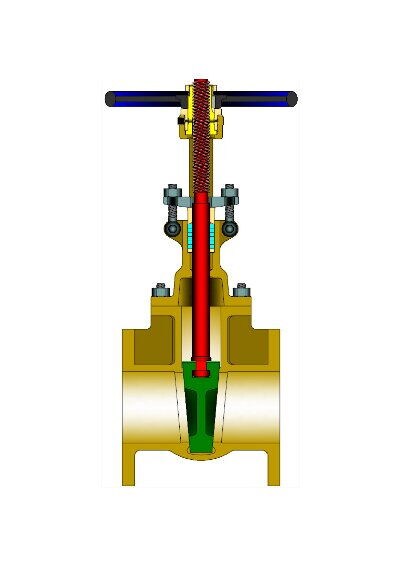

4" to 12" Gate Valve (Rising Stem) Class 150 LB 4 to 12 Inch Gate Valve (Rising Stem) Class 150 LB

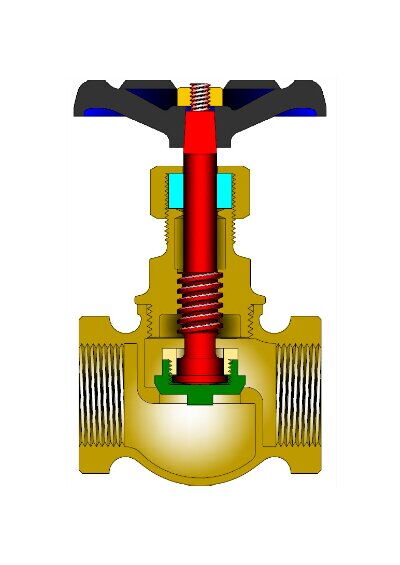

¼" to 3" Globe Valve Class 125 LB (Threaded Bonnet) 1/4 to 3 Inch Globe Valve Class 125 LB (Threaded Bonnet)

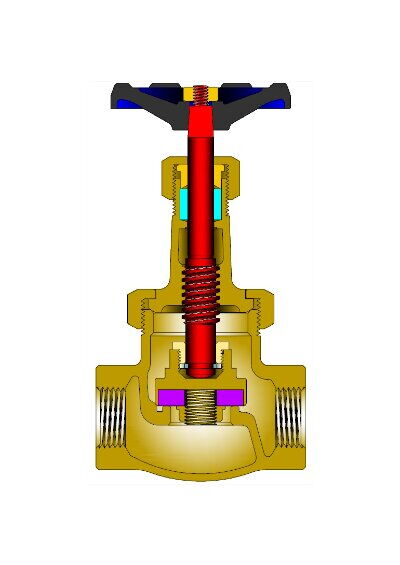

¼" to 3" Globe Valve Class 150 LB (Union Bonnet) 1/4 to 3 Inch Globe Valve Class 150 LB (Union Bonnet)

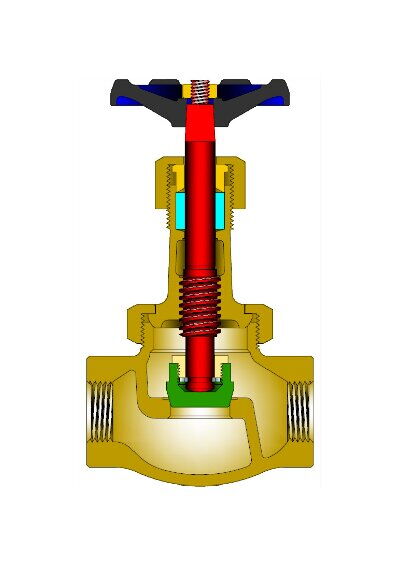

¼" to 3" Globe Valve Class 200 - 300 LB (Union Bonnet) 1/4 to 3 Inch Globe Valve Class 200 - 300 LB (Union Bonnet)

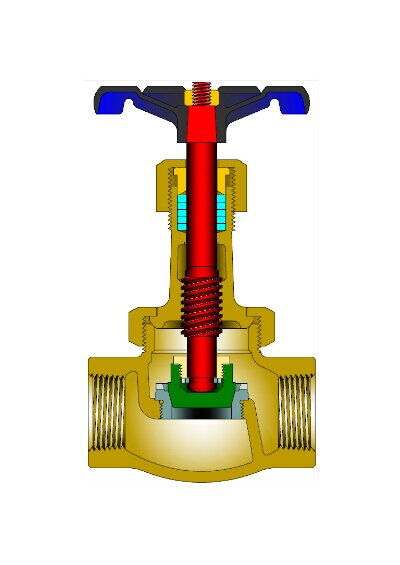

¼" to 3" Globe Valve Class 150 - 300 LB (Union Bonnet) 1/4 to 3 Inch Globe Valve Class 150 - 300 LB (Union Bonnet)

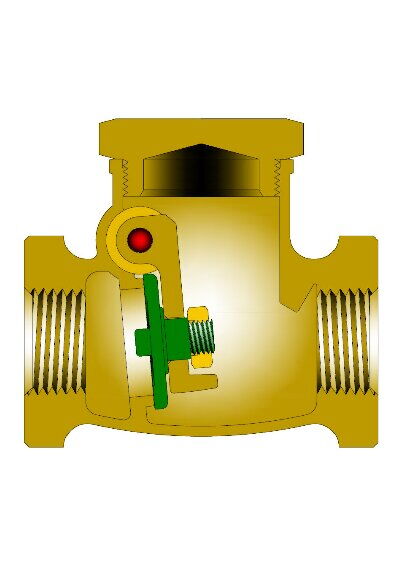

¼" to 3" Swing Check Valve Class 125 LB (Threaded Bonnet) 1/4 to 3 Inch Swing Check Valve Class 125 LB (Threaded Bonnet)

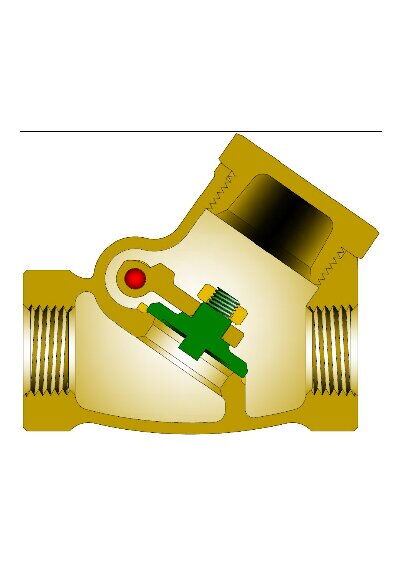

¼" to 3" Swing Check Valve (Y-Pattern) Class 200 - 300 LB (Threaded Bonnet) 1/4 to 3 Swing Check Valve (Y-Pattern) Class 200 - 300 LB (Threaded Bonnet)

Bronze Gate Valve-Different Views​

Class 150 LB SWP Bronze Gate Valve

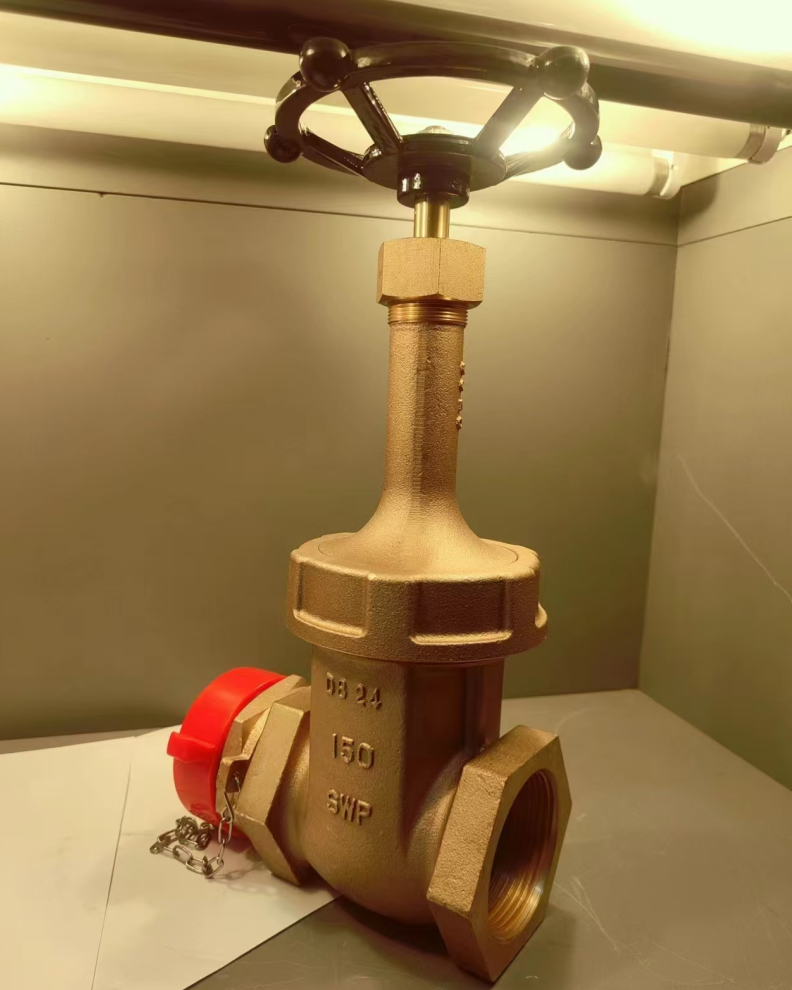

Bronze Gate Valve-Class 150 LB

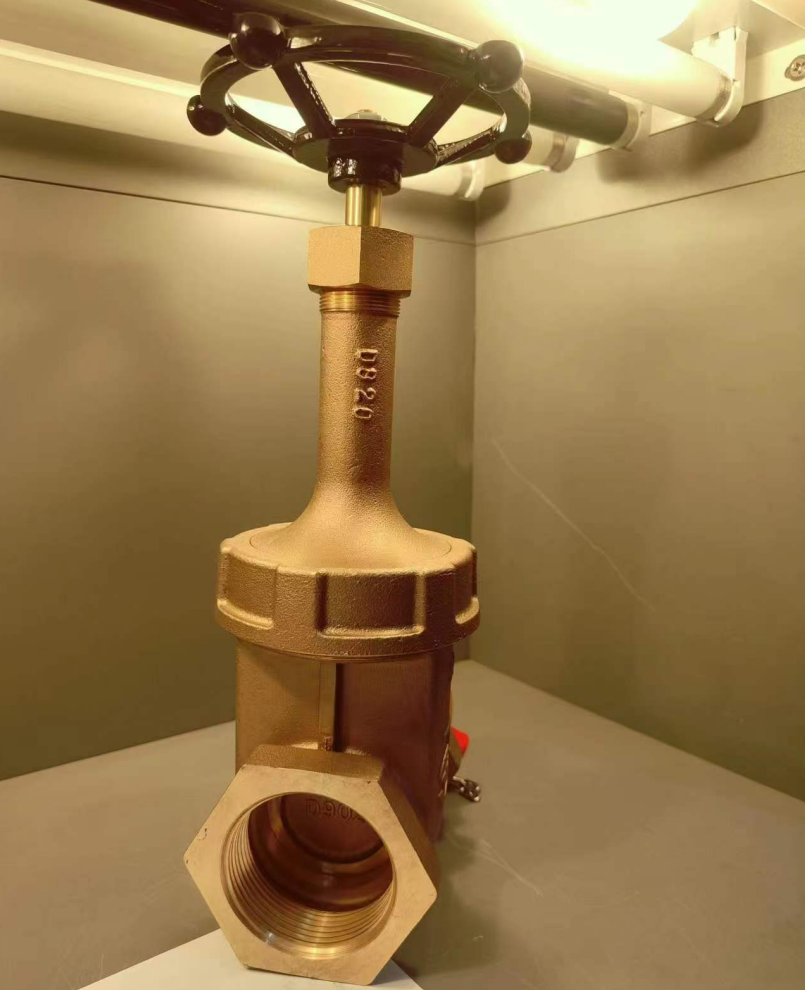

Class 150 LB Bronze Gate Valve Side View

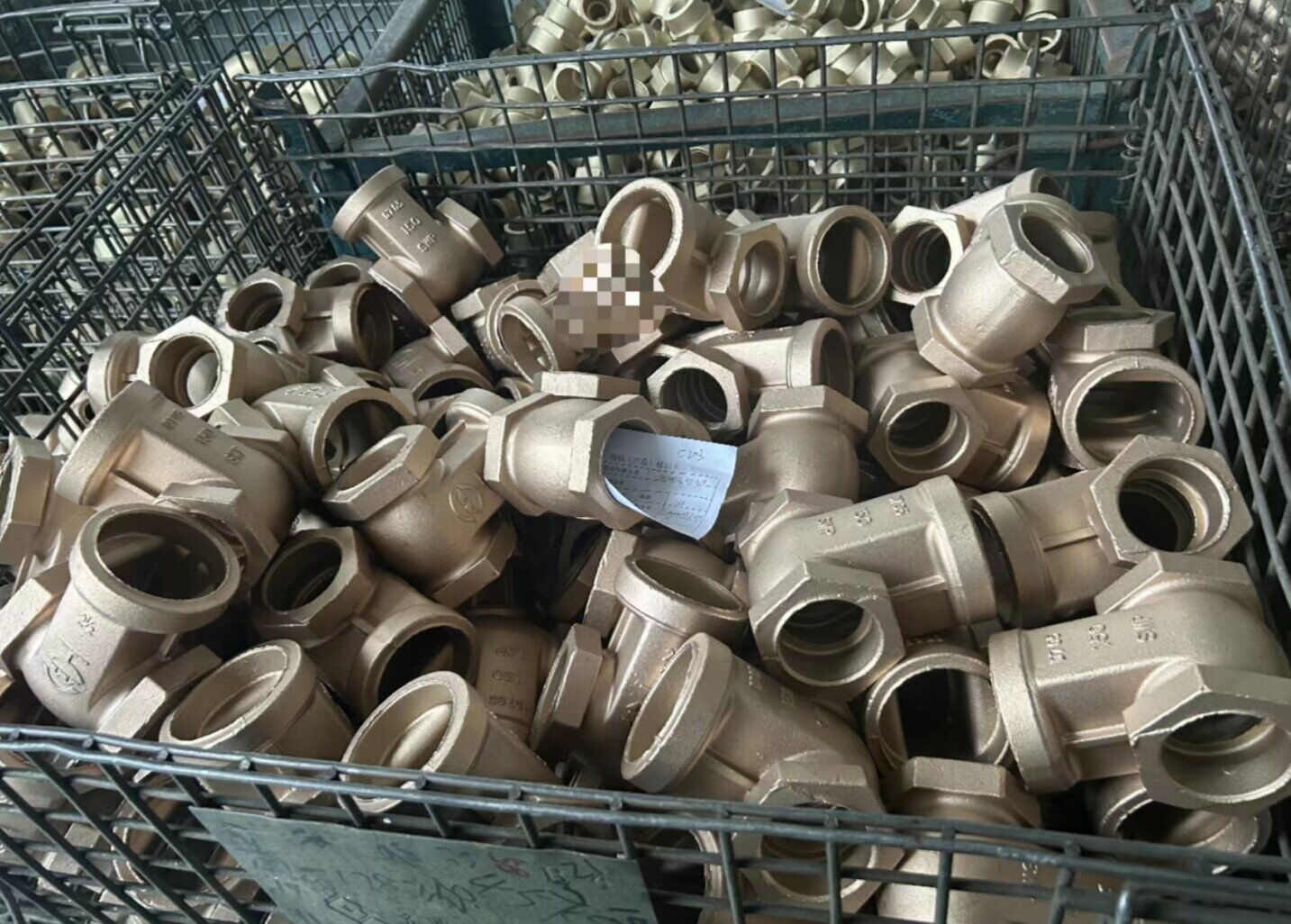

Bronze Valves Stock


Bosseal is professional manufacturer for the MSS SP-80 B62 Bronze Valves.

If you need any support please contact Bosseal team: [email protected].
