Fluorine-Lined Valves: Features, Applications and Selection

In industries such as chemicals, pharmaceuticals, and food processing, the transportation and control of corrosive media place extremely high demands on the safety and stability of pipeline systems. Traditional metal valves are prone to corrosion in harsh environments involving strong acids, strong alkalis, and oxidizing fluids, leading to leakage, damage, and even production safety risks. Fluorine-lined valves, with their exceptional corrosion resistance, excellent sealing performance, and broad applicability, have become a key solution in industrial fluid control.

The core advantage of fluorine-lined valves lies in their internal lining of fluoroplastics, such as Polytetrafluoroethylene (PTFE), Fluorinated Ethylene Propylene (FEP), or Perfluoroalkoxy (PFA). These materials exhibit outstanding chemical stability, enabling them to withstand most highly corrosive media. Whether operating in high-temperature, high-pressure environments or handling toxic and flammable substances, fluorine-lined valves ensure reliable fluid control and the long-term stability of pipeline systems.

This article provides a comprehensive analysis of the structural features, common types, application fields, selection criteria, and usage considerations of fluorine-lined valves, helping you gain a deeper understanding of their advantages and key selection factors.

Key Features of Fluorine-Lined Valves

The most prominent feature of fluorine-lined valves is their outstanding corrosion resistance. These valves can withstand the corrosion of most chemical media, including strong acids, bases, solvents, oils, and even certain hard-to-handle gases. Some of the common media that fluorine-lined valves can handle include:

• Strong Acidic Media: Sulfuric acid, hydrochloric acid, hydrofluoric acid, and others.
• Oxidizing Agents: Aqua regia, hydrogen peroxide, nitric acid, and more.
• Organic Acids: Acetic acid, thioacetic acid, oxalic acid, and others.
• Highly Corrosive Gases: Chlorine gas, hydrogen chloride gas, etc.

In addition to their corrosion resistance, fluorine-lined valves offer several other important advantages:

1. Excellent Sealing Performance

The combination of fluoroplastic linings with metal valve bodies provides superior sealing capabilities, preventing issues such as air and liquid leaks. This ensures that these valves can handle hazardous materials without leakage, improving safety and efficiency.

2. Non-Stick Properties

The non-stick nature of fluoroplastics reduces the attachment of media to the valve surfaces, ensuring smooth fluid flow. This feature not only minimizes friction but also helps lower maintenance and cleaning costs by preventing media buildup and corrosion.

3. High-Temperature Resistance

Fluorine-lined valves can operate reliably within a specific temperature range, making them suitable for high-temperature applications. They are capable of handling high-temperature fluid flows while maintaining their structural integrity.

4. Extended Service Life

Due to the stability of fluoroplastic materials, fluorine-lined valves generally offer a longer service life compared to traditional metal valves. They are especially advantageous in harsh environments, where metal valves may fail due to corrosion, wear, or high temperatures.

Typical Applications of Fluorine-Lined Valves

Fluorine-lined valves are commonly used in industries that require valves with superior corrosion resistance, ease of maintenance, and reliable performance. Their applications span across several sectors, as detailed below.

1. Chemical Industry

Fluorine-lined valves are extensively used in chemical reactors, pipelines, and chemical manufacturing processes, where preventing corrosion and leakage is crucial. The chemical industry involves the handling of aggressive substances, and these valves are designed to ensure safe and efficient operations.

2. Pharmaceutical Industry

Due to their corrosion resistance and ease of cleaning, fluorine-lined valves are widely used in pharmaceutical processes. In such applications, where hygiene and the prevention of contamination are of utmost importance, these valves ensure compliance with sanitary standards while providing a tight seal against leaks.

3. Food Processing

In food processing, fluorine-lined valves help prevent the corrosion of pipelines due to the presence of strong acids, alkalis, or other harsh substances. By using these valves, food manufacturers can ensure the safety and quality of their products while also maintaining the integrity of their systems.

4. Electronics Industry

Fluorine-lined valves are employed to handle chemicals used in the electronic manufacturing process. These valves prevent the chemical fluids from interacting with external environments, ensuring that the manufacturing process remains controlled and safe from contamination.

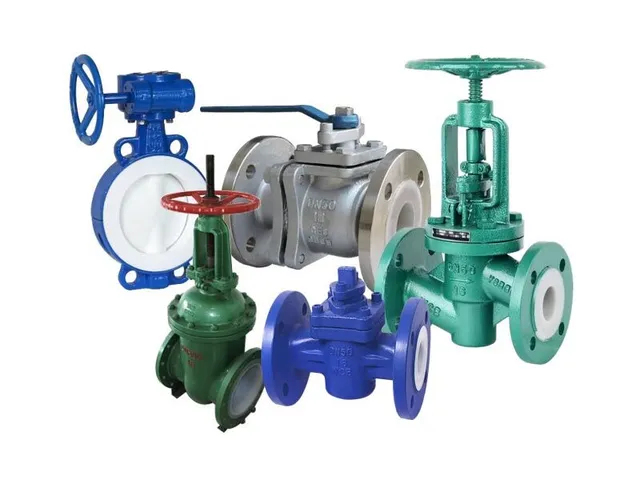

Common Types of Fluorine-Lined Valves

Fluorine-lined valves are available in different configurations to meet specific application needs. Here are some common types of Fluorine-Lined valves.

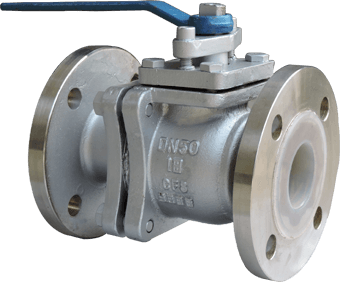

1. Fluorine-Lined Ball Valves

Fluorine-lined ball valves feature a fluoroplastic lining that offers excellent chemical stability. These valves are suitable for handling highly corrosive chemical media and are often designed with a floating ball structure to ensure leak-tight closure across the entire pressure range. Fluorine-lined ball valves are commonly used in systems that require ball cleaning and pipeline maintenance.

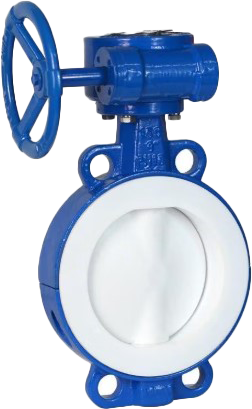

2. Fluorine-Lined Butterfly Valves

Fluorine-lined butterfly valves are ideal for applications where reliable sealing and good modulation characteristics are required. These valves have a split-body design, with the shaft seal achieved through the rotation of a fluororubber-coated disc, ensuring a compact and aesthetically pleasing structure. The design ensures that the shaft does not come into contact with the fluid medium, making it easier to replace.

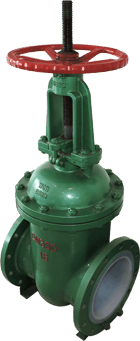

3. Fluorine-Lined Gate Valves

Gate valves are a popular type of shut-off valve, where the sealing face of the wedge gate is used to open or close the pipeline. Fluorine-lined gate valves are especially useful in systems where precision control is needed for flow regulation. It is important to note that wedge-type gate valves should not be used for minor opening, as high-speed flow may erode the sealing surface.

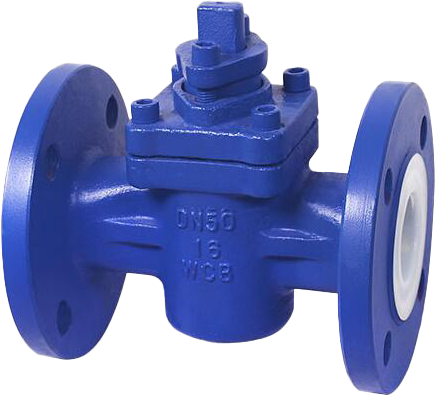

4. Fluorine-Lined Plug Valves

Fluorine-lined plug valves feature a compact design with minimal internal cavity space, reducing media retention. They are manufactured using compression molding techniques, which ensure leak-tight sealing. These valves are specifically designed for automatic on/off control of highly corrosive media in pipeline systems.

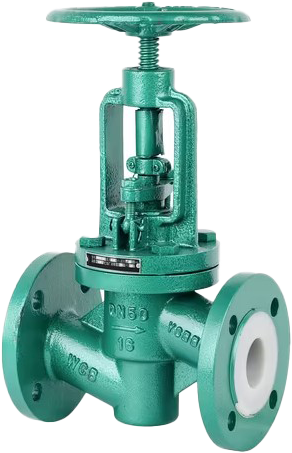

5. Fluorine-Lined Globe Valves

Fluorine-lined globe valves feature a rising stem that opens and closes through linear motion, allowing precise control of flow. With their fluoroplastic linings, these valves provide excellent sealing performance and are suitable for applications that require frequent operation and reliable control over flow rates.

Important Considerations for Using Fluorine-Lined Valves

While fluorine-lined valves offer remarkable advantages, proper usage, operation, and maintenance are critical to ensuring their performance and longevity. Below are key factors to consider when using these valves.

1. Temperature and Stress Control

Fluorine-lined valves typically operate within a temperature range of -50°C to 150°C. Exposure to higher temperatures may cause deformation or failure of the fluoroplastic lining. Therefore, it is crucial to control the temperature of the medium within this range. Additionally, to prevent stress concentration due to thermal expansion and contraction, it is recommended to install expansion joints before and after the valve to alleviate thermal stresses.

2. Avoiding Lever-Based Actuation

Given the brittleness of fluorine materials, it is essential to avoid using levers or excessive force when opening or closing fluorine-lined valves. Excessive torque can crack the lining. Using electric or pneumatic actuators ensures smooth, controlled, and precise valve operation, minimizing the risk of damage.

3. Handling of Reactive Media

For reactive or unstable media (such as chemicals that can expand or decompose under certain conditions), extra precautions should be taken during both the design and operation of the valve system. Suitable pressure control and explosion-proof measures should be incorporated to prevent pressure build-up or valve damage.

4. Handling Toxic Media

Fluorine-lined valves are frequently used in applications where toxic, hazardous, flammable, or explosive media are involved. During maintenance or disassembly, workers should wear appropriate protective gear and ensure that the environment is well-ventilated to avoid any potential danger.

5. Regular Maintenance and Inspection

Due to the inherent brittleness of fluoroplastics, these valves should be regularly inspected, particularly the sealing surfaces and valve seats. Over time, exposure to high temperatures or pressures may cause the fluoroplastic lining to degrade. Regular checks help detect any signs of wear or damage before they lead to leaks or failure.

Selecting the Right Fluorine-Lined Valve

The selection of the appropriate fluorine-lined valve involves considering various factors to ensure that the valve will operate efficiently and reliably in the specific application environment. Some of the critical considerations for valve selection are as follows.

1. Media Type and Corrosiveness

The type of fluid and its corrosive nature must be the primary consideration when selecting a fluorine-lined valve. Different fluoroplastics, such as FEP, PFA, and ETFE, exhibit varying levels of resistance to chemical agents. For example, FEP is suitable for most acid and alkali media, while PFA is better for environments with more corrosive substances.

2. Temperature Range

Temperature plays a significant role in the performance of fluorine-lined valves. Most fluorine-lined valves are designed for use in environments with temperatures ranging from -50°C to 150°C. If the system operates in extreme conditions, consider selecting specialized valves or reducing the operating temperature to stay within the material's tolerance range.

3. Pressure Requirements

The working pressure of the system should guide the selection of the appropriate valve. Fluorine-lined valves come in different pressure ratings, including standard, medium, and high-pressure versions. It is essential to select a valve that can withstand the required system pressure to prevent failures or leaks.

4. Flow Control and Size

Valve size and flow requirements should match the pipeline system's specifications. For higher flow rates, larger-sized fluorine-lined valves should be chosen, ensuring that the valve design can effectively control the media flow.

5. Compatibility with Actuators

The valve's actuation method must also be compatible with the operating system. Pneumatic, electric, and hydraulic actuators are commonly used with fluorine-lined valves. The actuator selection should ensure smooth and precise valve operation, preventing unnecessary stress on the lining material.

Conclusion

Fluorine-lined valves are a critical component in industrial systems handling highly corrosive, toxic, or reactive media. With their exceptional resistance to corrosion, high-temperature stability, and long service life, these valves provide a reliable solution for industries such as chemical processing, pharmaceuticals, food production, and electronics. However, to ensure the valves perform optimally and last for the required duration, factors such as media type, temperature, pressure, and maintenance should always be considered during installation and operation.
