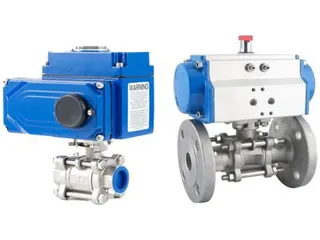

Comparison of Electric and Pneumatic Actuated Valves

Electric actuated valves and pneumatic actuated valves are widely used in fluid control systems across various industries. They each have distinct driving mechanisms and operating principles, making them suitable for different applications and working conditions. Understanding their features, advantages, and limitations is crucial when selecting the right valve. Below is a detailed comparison of electric actuated valves and pneumatic actuated valves.

Overview of Electric Actuated Valves

Electric actuated valves are powered by electric actuators, which typically consist of electric motors, controllers, and valve bodies. These valves allow for precise control of fluid flow and are ideal for systems that require stable and accurate regulation.

1. Advantages of Electric Actuated Valves

Suitable for Liquids and Large-Diameter Gases: Electric actuated valves are well-suited for controlling liquids and large-diameter gases. They ensure stable regulation and precise operation.

Not Affected by External Conditions: Electric actuated valves are not influenced by weather or fluctuations in air pressure. They offer high adaptability in various environments.

High Sensitivity and Precise Control: Electric actuated valves provide high control accuracy, enabling precise adjustments to flow, pressure, and other parameters. They are ideal for precision processes.

No Need for External Air Source: Unlike pneumatic actuated valves, electric actuated valves do not require an external compressed air supply. They only need a stable electrical power source to function.

2. Disadvantages of Electric Actuated Valves

High Initial Investment: Electric actuated valves tend to have a higher initial cost due to the complexity of the electric actuator and control system.

Limited Performance in Harsh Environments: Electric actuated valves may not perform as well in humid, corrosive, or explosive environments. They also carry a risk of sparks or malfunctions in hazardous areas.

Slower Response Time: Electric actuated valves are slower to operate compared to pneumatic actuated valves. While they offer precise control, they are not ideal for applications requiring rapid responses.

Overview of Pneumatic Actuated Valves

Pneumatic actuated valves use compressed air as their power source. These valves are driven by pneumatic actuators, which operate the valve to open, close, or adjust flow. While the control system for pneumatic actuated valves can be more complex, they offer fast response times and are suited for applications with frequent adjustments or rapid start/stop cycles.

1. Advantages of Pneumatic Actuated Valves

Suitable for Gases and Small-Diameter Liquids: Pneumatic actuated valves are ideal for controlling gases and small-diameter liquids. They provide fast response times and good control.

Quick Switching Speed: Pneumatic actuated valves respond quickly, allowing for rapid changes in flow direction. They are well-suited for applications requiring fast switching.

Safety and Reliability: Pneumatic actuated valves are safe to use, particularly in hazardous environments with flammable gases or high temperatures. They do not produce sparks, making them ideal for explosion-proof applications.

Simple Design and Easy Maintenance: Pneumatic actuated valves are generally easier to maintain due to their simple structure. Replacing pneumatic actuators is also straightforward.

Adjustable Speed: Pneumatic actuated valves can have their operating speed controlled by adjusting the air supply pressure. This feature makes them adaptable to a variety of operational needs.

2. Disadvantages of Pneumatic Actuated Valves

Dependence on Air Supply: Pneumatic actuated valves require a stable compressed air source, and maintaining air compressors can be costly. Unstable air pressure may impact valve performance.

Complex Control Systems: Pneumatic actuated valves often require complex control systems that may include solenoid valves, positioners, and other components. This increases system complexity and costs.

Limited Performance in Extreme Conditions: Pneumatic actuated valves can experience performance issues in extreme cold, as moisture in the air supply may cause the valves to freeze.

Key Differences Between Electric and Pneumatic Actuated Valves

The primary difference between electric actuated valves and pneumatic actuated valves lies in their driving mechanisms. Electric actuated valves rely on electric motors to drive the actuator, while pneumatic actuated valves use compressed air to operate the actuator. These differences result in significant variations in performance, cost, and suitability for different applications.

Drive Mechanism: Electric actuated valves use electric actuators powered by electric motors. Pneumatic actuated valves rely on compressed air to drive pneumatic actuators.

Suitable Media: Electric actuated valves are ideal for controlling liquids and large-diameter gases, whereas pneumatic actuated valves are more suited for gases and small-diameter liquids.

Cost: Electric actuated valves tend to be more expensive due to the complexity of the electric actuators and control systems. Pneumatic actuated valves are more economical, especially in cost-sensitive applications.

Response Time: Pneumatic actuated valves have a faster switching speed, making them better suited for quick start-stop operations. Electric actuated valves are slower but offer better control precision.

Control Precision: Electric actuated valves excel in control precision. They can make very fine adjustments to flow and pressure. Pneumatic actuated valves, while fast, are less precise.

Safety: Pneumatic actuated valves are typically safer in environments with flammable gases or high temperatures. They do not generate sparks, reducing the risk of accidents. Electric actuated valves can pose a risk in these environments.

Maintenance: Pneumatic actuated valves are easier to maintain due to their simpler structure. Electric actuated valves require more complex maintenance, particularly if the electric actuator malfunctions.

Choosing the Right Valve for Different Applications

The choice between electric and pneumatic actuated valves depends on the specific application scenario, taking into account factors such as the type of medium, pipe size, control precision, environmental conditions, response speed, and safety requirements. Below are specific application recommendations based on different operating conditions and needs.

Liquid and Large-Diameter Gas Applications: Electric actuated valves are typically used for controlling liquids and large-diameter gases, especially in applications that require precise control, such as industrial pipelines, chemical processes, and water distribution systems.

Gas and Small-Diameter Liquid Applications: Pneumatic actuated valves are better suited for controlling gases and small-diameter liquids, particularly when fast switching or frequent adjustments are needed. They are common in automated control systems, HVAC systems, and gas distribution networks.

Explosion-Proof and High-Safety Environments: Pneumatic actuated valves are often preferred in environments with a high risk of explosion, such as oil, gas, and chemical industries. Their spark-free operation makes them more suitable for hazardous areas. While electric actuated valves offer high precision, their use in such environments is less common.

Precision Adjustment Applications: For fine adjustments, especially in liquid flow control, electric actuated valves are the preferred choice due to their high control accuracy. Pneumatic actuated valves are better for rapid switching or high-pressure regulation.

Conclusion

Electric actuated valves and pneumatic actuated valves each have distinct advantages and limitations. The choice of the right valve depends on factors such as the application requirements, control precision, safety, response speed, maintenance needs, and cost. Electric actuated valves offer superior precision, adaptability in harsh environments, and sensitivity, while pneumatic actuated valves are faster, safer, and easier to maintain. In many industrial applications, especially in industries such as chemical, oil, and gas, pneumatic actuated valves are widely used in automation systems.
