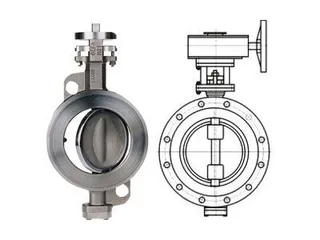

Butterfly Valve Flow Direction and Installation Tips

In industrial fluid control systems, butterfly valves play a key role in regulating and stopping flow. Choosing the right flow direction and installing the valve correctly are critical for ensuring good performance. The flow direction affects how the valve works, and it's closely tied to things like the valve's seal type, pressure rating, and where it's used. Different types of butterfly valves have specific requirements for how the flow should be directed during installation. In this article, we'll break down the differences between unidirectional and bidirectional butterfly valves, how to identify flow direction, installation tips, and some important technical details.

Unidirectional vs. Bidirectional Butterfly Valves

Butterfly valves can be either unidirectional or bidirectional based on how fluid flows through them. The main differences between these two types come down to their sealing structure, pressure direction, and flow requirements.

1. Low-Pressure Soft-Seal Butterfly Valves

Low-pressure soft-seal butterfly valves (like wafer and flanged types) are usually designed for bidirectional flow. These valves have a soft seal that works in both directions, meaning the flow direction isn't a big deal during installation. These types of valves are a good fit for low-pressure systems where you don't need to worry too much about the flow direction.

2. Medium-Pressure and High-Pressure Butterfly Valves

Medium-pressure and high-pressure butterfly valves typically have a hard-seal design. These valves are often unidirectional, as they need to handle higher pressure. The valve body usually has an arrow showing the correct flow direction. It's important to install these valves according to the arrow, as doing so ensures the seal works properly and the valve remains stable.

Flow Direction Markings and Installation Tips

When installing butterfly valves, the flow direction plays a big part. Understanding the flow direction arrow and following the installation instructions will help keep your system running smoothly and your equipment working properly.

1. Flow Direction Arrow

Most butterfly valves have an arrow on the body showing which way the fluid should flow. For most valves, the direction of the arrow should line up with the direction the valve's disc moves. When you install the valve, make sure the disc's sealing face faces the flow direction. This is especially important for unidirectional valves, as incorrect installation could lead to sealing problems or poor performance.

Unidirectional Butterfly Valves: For unidirectional butterfly valves, the disc should face the direction of flow when it's closed. Fluid should only enter from the direction of the arrow, and reverse flow isn't allowed. Always follow the arrow on the valve body when installing.

Bidirectional Butterfly Valves: Bidirectional butterfly valves are designed to handle fluid flow in either direction. Their sealing performance isn't affected by the flow direction. These valves often don't have a flow direction arrow, which reflects their flexibility. During installation, you don't need to worry about the flow direction, but make sure the valve is still installed according to the design requirements.

2. Installation Tips

Unidirectional Butterfly Valve Installation: For unidirectional valves, it's essential to install the valve so the flow direction matches the arrow on the valve body. If you install it the wrong way, you could lose the seal, and the valve might not function properly.

Bidirectional Butterfly Valve Installation: With bidirectional valves, you don't need to worry about the flow direction during installation. They'll keep their seal intact no matter which way the fluid flows. Since these valves don't have a flow direction arrow, installation is simpler, but you still need to ensure the valve meets the design requirements.

Difference Between Unidirectional and Bidirectional Sealing

The valve's sealing structure plays a big role in deciding which flow direction is best and how much pressure it can handle. The design of unidirectional and bidirectional valves determines where and how they should be used.

1. Unidirectional Sealing Butterfly Valves

Unidirectional butterfly valves are designed to face the fluid flow when the disc is closed. The fluid can only flow in one direction, and the valve can only handle pressure in that direction. The seal is stronger in the pressure direction, making these valves ideal for medium- and low-pressure systems where the flow is usually fixed and doesn't go in reverse.

Where to Use Them: Unidirectional butterfly valves work well in general fluid control systems like water treatment, gas supply, and HVAC systems. These systems usually have a consistent flow direction and don't require the flow to go backward.

2. Bidirectional Sealing Butterfly Valves

Bidirectional butterfly valves are built to prevent leaks in both directions, even under full pressure. They're more complex than unidirectional valves and can handle higher forces. Bidirectional valves keep their sealing performance whether the fluid flows forward or backward. This makes them ideal for situations where the flow direction might change or for high-pressure or harsh environments.

Where to Use Them: You'll find bidirectional butterfly valves in high-pressure liquid and gas pipelines, including in industries like oil, chemicals, and natural gas. They're great for systems that need both pressure resistance in either direction and strong sealing performance.

Advantages and Design of Bidirectional Butterfly Valves

Bidirectional butterfly valves have distinct advantages, particularly in sealing, performance, and stability during operation.

1. Design Features

Disc Structure: Bidirectional butterfly valves often have a balanced disc design. This structure makes the disc more rigid, which helps reduce flow resistance and increases the flow area. It also prevents valve vibration during operation.

Sealing Performance: Bidirectional butterfly valves use metal-to-metal hard seals that guarantee zero leakage under full pressure. Even when the fluid flows in reverse, the valve continues to maintain its high sealing performance.

2. Performance Advantages

Low Flow Resistance: Bidirectional butterfly valves have low flow resistance, allowing for greater flow and minimal energy loss when fully open.

Flexible Drive Options: Bidirectional butterfly valves can be equipped with hydraulic, pneumatic, electric, or turbine drives, making them adaptable to different operating conditions. They're also easy to operate and maintain.

Conclusion

The flow direction of butterfly valves is crucial for both their selection and installation. Correctly understanding the flow direction and sealing structure not only affects valve performance but also system stability and safety. Low-pressure soft-seal butterfly valves are typically bidirectional, while medium- and high-pressure hard-seal butterfly valves are unidirectional. Always pay attention to the flow direction arrow during installation to ensure the valve matches the fluid flow direction. This helps avoid sealing failures or system issues. Bidirectional butterfly valves stand out with their superior sealing performance, bidirectional pressure resistance, and reliable operation, making them the best choice for high-pressure and complex applications. For systems that need high sealing and bidirectional pressure resistance, bidirectional butterfly valves are the ideal option.
