MSS SP-80 Non-rising Stem Gate Valve, 200 LB, 1/4 IN, C83600

Name: MSS SP-80 Non-rising Stem Gate Valve, 200 LB, 1/4 IN, C83600
SKU: 1876021
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : 1876021

As a trusted non-rising stem gate valve factory from China, we manufacture high-performance valves designed to MSS SP-80 standards. Our 1/4 inch gate valves feature a C83600 bronze body, rated for Class 200 LB, and come with a threaded union bonnet for secure assembly. Equipped with a handwheel for easy operation, these valves offer a standard bore for efficient flow control. Designed for durability and reliability, our non-rising stem gate valves are ideal for a wide range of industrial applications requiring consistent performance.

Request a quote

Tags:

MSS SP-80 Gate Valve

Non-Rising Stem Gate Valve

Class 200 LB Gate Valve

Detail Information

MSS SP-80 Gate Valve, 1/4 Inch, 200 LB, ASTM B62 C83600 Body.

Valve Description:
1876021 Gate Valve
Bore Type: Standard Bore
Design Standard: MSS SP-80
Structure: Threaded, Union Bonnet
Body Material: ASTM B62 C83600
Size Range: 1/4 Inch
Nominal Class: Class 200 LB
Test and Inspection: MSS SP-80
Trim Material: ASTM B62 C83600
Face to Face: Manufacturer Standard
End Connection: Threaded ASME B1.20.1
Operation: Handwheel

Key Features:
1. Renewable solid wedges for enhanced durability.
2. Integral seats for improved sealing performance.
3. High-tensile bronze alloy stems for strength and reliability.
4. Each valve undergoes shell and seat pressure testing per MSS SP-80 industry standards.
5. Options for both rising and non-rising stems are available.

Product Range:
Body Material: Bronze ASTM B62 C83600
Normal Diameter: 1/4 IN, 3/8 IN, 1/2 IN, 3/4 IN, 1 IN, 1-1/2 IN, 2 IN, 2-1/2 IN, 3 Inch (DN6 – DN80)
Pressure Range: Class 125 LB, 150 LB, 200 LB, 300 LB
Working Temperature: -20°C to +150°C
End Connection: Threaded
Operation: Handwheel

Next: Class 200 LB Bronze Gate Valves, MSS SP-80, 3/8 IN, C83600

Previous: ASTM B62 Bronze Gate Valve, 3 Inches, CL 150 LB, MSS SP-80

Similar Products

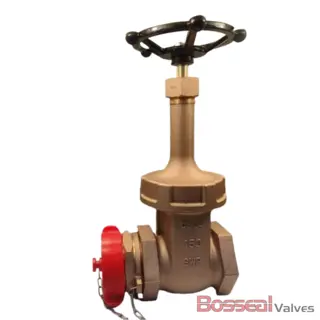

ASTM B62 C83600 Bronze Gate Valve, MSS SP-80, 1/4 IN, 125 LB
