MSS SP-80 Bronze Gate Valve, ASTM B62, 2 IN, CL 200 LB

Name: MSS SP-80 Bronze Gate Valve, ASTM B62, 2 IN, CL 200 LB
SKU: 1876027
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : 1876027

As a leading bronze gate valve provider from China, we deliver high-quality valves built to MSS SP-80 standards. Featuring a durable ASTM B62 C83600 bronze body, this 2-inch valve is rated for Class 200 LB and comes with a threaded bonnet for secure assembly. Available in both rising stem and non-rising stem options, it offers flexibility to suit various application needs. Each valve undergoes rigorous shell and seat pressure testing, ensuring optimal performance and reliability in accordance with MSS SP-80 industry standards. Ideal for demanding industrial environments.

Request a quote

Tags:

MSS SP-80 Gate Valve

Bronze Gate Valve

ASTM B62 C83600 Gate Valve

Detail Information

MSS SP-80 Bronze Gate Valves, 2 Inch/DN50, Class 200 LB, Threaded Bonnet.

Valve Description:
1876027 Gate Valve
Bore Type: Standard Bore
Design Standard: MSS SP-80
Body Material: ASTM B62 C83600
Nominal Size: 2 Inch, DN50
Nominal Class: Class 200 LB
Trim Material: ASTM B62 C83600
Operation: Handwheel
Face to Face: Manufacturer Standard
Test and Inspection: MSS SP-80
Structure: Threaded, Union Bonnet
End Connection: Threaded ASME B1.20.1

Key Features:
1. Renewable solid wedges for enhanced durability.
2. Integral seats for improved sealing performance.
3. High-tensile bronze alloy stems for strength and reliability.
4. Each valve undergoes shell and seat pressure testing by MSS SP-80 industry standards.
5. Options for both rising and non-rising stems are available.

Product Range:
Body Material: Bronze ASTM B62
Normal Diameter: 1/4-3 Inch (DN6 – DN80)
Pressure Range: Class 125, 150, 200, 300 LB
Working Temperature: -20°C to +150°C
Operation: Handwheel
End Connection: Threaded

Next: Bronze B62 C83600 Gate Valve, 2-1/2 IN, 200 LB, Threaded

Previous: ASTM A216 WCB Wedge Gate Valve, API 600, 24 Inch, 150 LB, RF

Similar Products

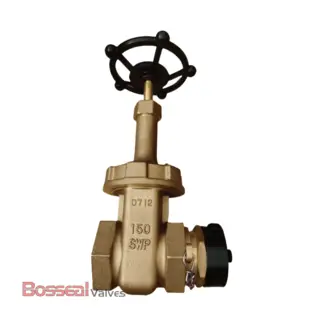

Bronze B62 C83600 Gate Valve, 2-1/2 IN, 200 LB, Threaded

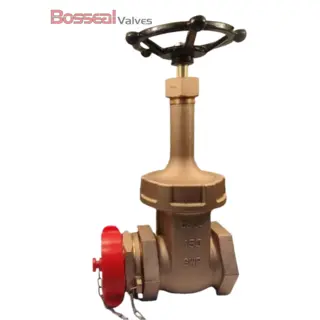

2-inch Bronze Gate Valve, MSS SP-80, 125 LB, ASTM B62 C83600

Class 200 LB Bronze Gate Valves, MSS SP-80, 3/8 IN, C83600

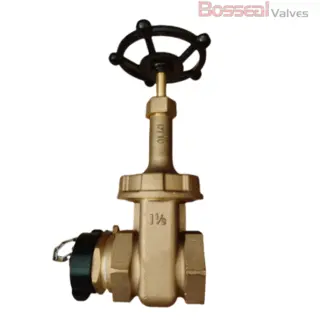

MSS SP-80 Gate Valve, B62 C83600, 2 IN, 150 LB, Threaded
