API 609

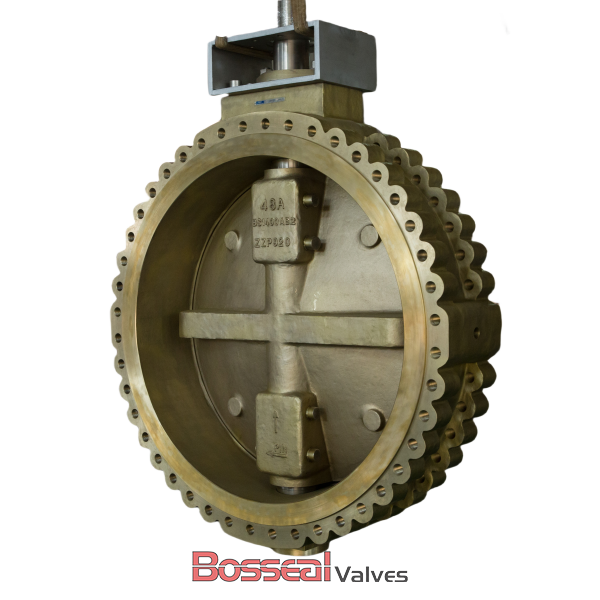

Butterfly Valve, ASTM B148 C95800 Body, 32 Inch, 150 LB, RPTFE Seated.
Valve Description
| 1862343 High-Performance Butterfly Valve |
| Design Standard: |
API 609 Category B, EN 593 |
| Body Material: |
ASTM B148 C95800, ASTM A216 WCB, Titanium, ASTM A890 5A, ASTM A351 CF8M, ASTM A351 CF8, ASTM A890 4A. |
| Nominal Size: |
32 Inch |
| Nominal Class: |
Class 150 LB, PN20 |
| Structure: |
Double Offset, Double Eccentric |
| Seat Type: |
Soft Seat |
| Face to Face: |
API 609, EN 593 |
| Operation: |
Gear |
| Seat: |
RPTFE, PPL |
| End Connection: |
Lug |
| Test and Inspection: |
API 598, API 609 |
| Trim Material: |
ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium |
| Key Features: |
Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available. |
Product Range
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Normal Diameter: 1/2-48 Inch (DN15-DN1200)
Pressure Range: Class 150 - 300 LB
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
Bosseal Valve advantages: 0 Leakage, low Torque, Long working life, Low Emission, Bi-direction and Fire Safe Design.
