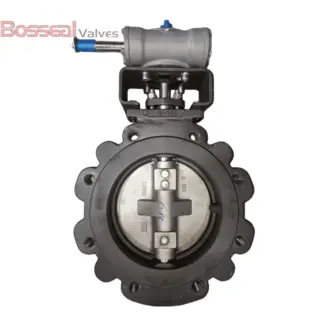

Monel K500 Stem Butterfly Valve, CL 150, 28 Inch, A890 4A

Key Specifications / Features

Model no. : 1862383

As a premier manufacturer of EN 593 flanged butterfly valves, we provide 28-inch valves designed to API 609 Category B standards. Constructed from ASTM A890 4A material, these double offset valves feature a Monel K500 stem and a soft RPTFE seat for reliable sealing. Rated for Class 150 LB, our valves offer excellent performance in a variety of industrial applications. The double offset design ensures smooth operation and enhanced durability, making them an ideal choice for reliable flow control and isolation. Trust us for high-quality solutions tailored to your needs.

Detail Information

API 609 Butterfly Valve, ASTM A890 4A Body, 28 Inch, 150 LB, RPTFE Seated.

Valve Description

1862383 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Body Material: ASTM A890 4A, Titanium, ASTM B148 C95800, ASTM A216 WCB, ASTM A890 5A, ASTM A351 CF8M, ASTM A351 CF8.
Nominal Size: 28 Inch
Nominal Class: Class 150 LB, PN16
Structure: Double Offset, Double Eccentric
Seat Type: Soft Seat
Face to Face: API 609, EN 593
Operation: Gear
Seat: RPTFE, PPL
End Connection: Double Flanged
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Normal Diameter: 1/2-48 Inch (DN15-DN1200)
Pressure Range: Class 150 - 300 LB
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
Bosseal Valve advantages: 0 Leakage, low Torque, Long working life, Low Emission, Bi-direction and Fire Safe Design.
