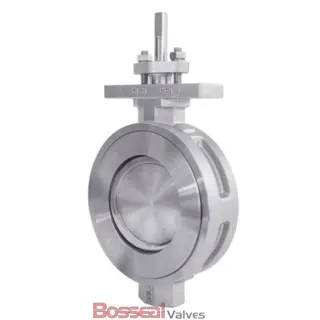

Monel K500 Stem Butterfly Valve, 3 IN, 150 LB, B148 C95800

Key Specifications / Features

Model no. : 1862329

We manufacture double-offset butterfly valves designed to meet API 609 Category B and EN 593 standards. Made from ASTM B148 C95800 material, our 3-inch valves are rated for Class 150 LB, offering excellent performance across a range of applications. With a soft RPTFE seat and a Monel K500 stem, these valves provide superior sealing and corrosion resistance, making them ideal for flow regulation and pipeline isolation. As a leading butterfly valve manufacturer in China, we are dedicated to delivering high-quality, reliable valve solutions.

Detail Information

API 609 Category B Butterfly Valve, 3 Inch/DN80, 150 LB, Soft Seat, Lug End.

Valve Description

1862329 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Nominal Size: 3 Inch, DN80
Nominal Class: Class 150 LB, PN20
Seat Type: Soft Seat
Operation: Lever
Body Material: ASTM B148 C95800, ASTM A216 WCB, Titanium, ASTM A890 5A, ASTM A890 4A, ASTM A351 CF8M, ASTM A351 CF8.
Seat: RPTFE, PPL
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
End Connection: Lug
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Structure: Double Offset, Double Eccentric

Key Features

1. Long lifespan for high-frequency operation (up to a million cycles).
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
