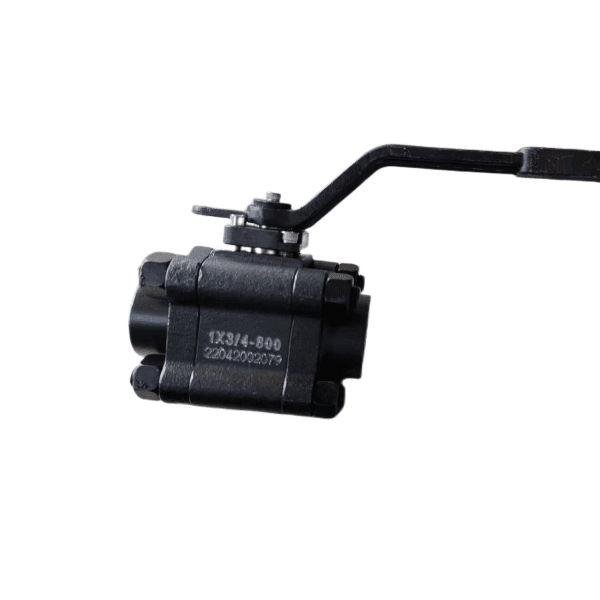

Lever Lockable Ball Valve, 1 IN, 800 LB, ISO 17292, A105N, 316 Trim

Key Specifications / Features

Model no. : 1BB8SNA105

Discover high-quality lever lockable floating ball valves from a leading manufacturer. Our 1-inch valves, with specifications including DN25, 800 LB, PN130, API 6D, ISO 17292, API 608, ASTM A105N, F316 trim, and RPTFE seat, feature SW x FNPT threaded ends for secure installation. Ideal for various industrial applications, ensuring reliability and performance.


Detail Information

1 inch, 800 LB, Floating Ball Valve, SW X FNPT Threaded End, ISO 17292, A105N body with 316 Trim, RPTFE seat and lever operation

Valve Description:
1812053 Floating Ball Valve 1BB8SNA105
Design Standard: API 608, ISO 17292, API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, Soft Seat, Yoke for Limit Switch
Nominal size: 1 Inch, DN25
Nominal class: 800 LB
Bore Type: Full Bore
End Connection: FNPT X SW
Operation: Lever Lockable
Body Material: ASTM A105N
Trim Material: ASTM A182 F316, RPTFE
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Anti-static Device, Fire Safe, Anti-Blowout Stem, Locking Device

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 2 Inch (DN15 - DN50)
Pressure range: Class 150 - 2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +150℃
Operation: Lever, Spring Return Lever, Pneumatic Actuator
