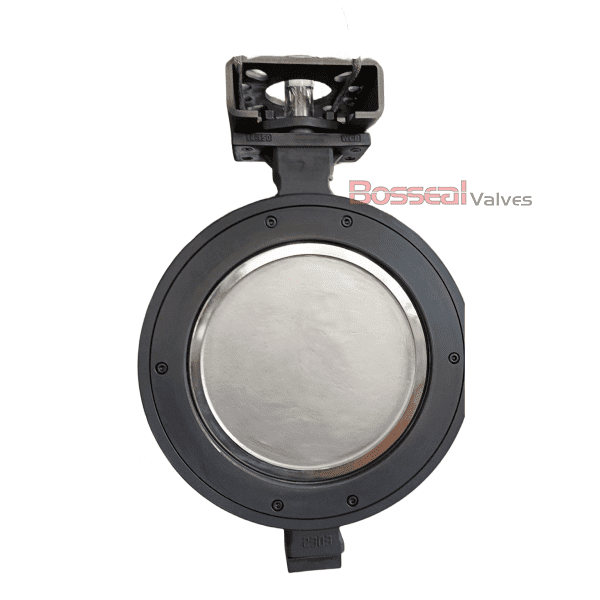

High-Performance Butterfly Valve, Titanium, 24 IN, 300 LB

Key Specifications / Features

Model no. : 1862108

As a specialized fabricator of titanium butterfly valves, we produce high-performance valves designed to meet EN 593 and API 609 Category B standards. These double offset valves offer superior flow control and durability in challenging environments. Our 24-inch, 300 LB models feature a corrosion-resistant 17-4PH stainless steel stem and an RPTFE seat for enhanced sealing. The lug end design ensures secure and easy installation. Engineered for high-performance applications, these valves are ideal for industries requiring reliability and precision in harsh conditions.

Detail Information

EN 593 High-Performance Butterfly Valve, Double Offset, RPTFE Seat, Gear Operation, Lug End.

Valve Description

1862108 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Structure: Double Offset, Double Eccentric
Nominal Size: 24 Inch, DN600
Nominal Class: Class 300 LB, PN50
Seat Type: Soft Seat
Operation: Gear
Body Material: Titanium, ASTM A216 WCB, ASTM A890 4A, ASTM A351 CF8M, ASTM A351 CF8, ASTM A890 5A, ASTM B148 C95800.
Seat: RPTFE, PPL
End Connection: Lug
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium

Key Features

1. Long lifespan for high-frequency operation (up to a million cycles).
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
End Connection: Wafer, Lug, Flanged
Working Temperature: -26°C to +120°C (180°C for PPL seat)
Operation Types: Lever, Gear, Pneumatic Actuator
Bosseal Valve advantages: 0 Leakage, low Torque, Long working life, Low Emission, Bi-direction and Fire Safe


Drawing for Butterfly Valve
