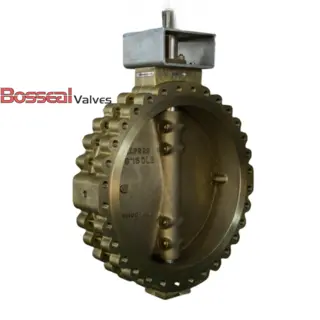

High-Performance Butterfly Valve, B148 C95800, 4 IN, CL 150

Key Specifications / Features

Model no. : 1862120

As a leading supplier of double flanged butterfly valves, we provide high-performance solutions that meet API 609 Category B standards. Our 4-inch (DN100), Class 150 LB valves feature a double eccentric design and are made from ASTM B148 C95800 aluminum bronze, offering excellent corrosion resistance and durability. Equipped with a 17-4PH stem and soft seat, these valves deliver reliable sealing and smooth operation across a range of industrial applications. Built for long-lasting performance, our valves provide a dependable solution for demanding environments.

Detail Information

Aluminum Bronze Butterfly Valve, API 609 Category B, 4 Inch/DN100, 150 LB, Gear Operation.

Valve Description

1862120 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Structure: Double Offset, Double Eccentric
Nominal Size: 4 Inch, DN100
Nominal Class: Class 150 LB, PN20
Body Material: ASTM B148 C95800, ASTM A351 CF8M, ASTM A351 CF8, ASTM A890 4A, ASTM A216 WCB, ASTM A890 5A, Titanium.
Seat Type: Soft Seat
Face to Face: API 609, EN 593
Operation: Lever
Seat: RPTFE, PPL
End Connection: Double Flanged
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2  - 48 Inch (DN15 - DN1200)
Pressure Range: CL 150  - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
Top Mounting: ISO 5211 Top Mounting Available
Operation Types: Lever, Gear, Pneumatic Actuator
