Key Specifications / Features
Model no. : BTV-187302017
We are a high-performance butterfly valve manufacturer in China, offering premium valves with aluminium bronze ASTM B148 C95800 bodies. Designed in compliance with API 609 standards, our 32-inch valves are rated for Class 150 LB and built to deliver reliable performance in challenging environments. Featuring a soft seat for excellent sealing and reduced torque, these valves are available in wafer, lug, and flanged end connections to suit various installation needs. Ideal for marine, offshore, and industrial applications, our butterfly valves ensure long-lasting durability, corrosion resistance, and smooth flow control.
Valve Description:

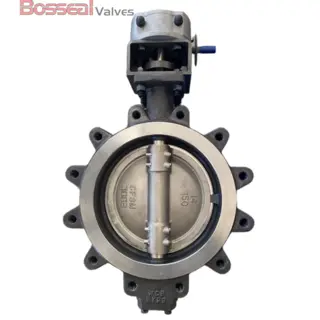

187302017 High Performance Butterfly Valve
Design Standard: API 609 Category B, BS EN 593
Body Material: ASTM B148 C95800
Structure: Double Offset, Double Eccentric
Nominal Size: 32 Inch, DN800
Nominal Class: 150 LB
Seat Type: Soft Seat
End Connection: Wafer/Lug/Flanged
Operation: Lever/Gear
Trim Material: ASTM B148 C95800
Seat: RPTFE, PPL
Face to Face: API 609, BS EN 593
Test and Inspection: API 598, API 609
Key Features: Long working life for frequent operation(million cycling), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available, Aluminium bronze for sea water service
Product Range:
Body Material: Aluminium Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: Wafer/Lug/Flanged
Working Temperature: -26°C - +120°C (180°C for PPL Seat)
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
