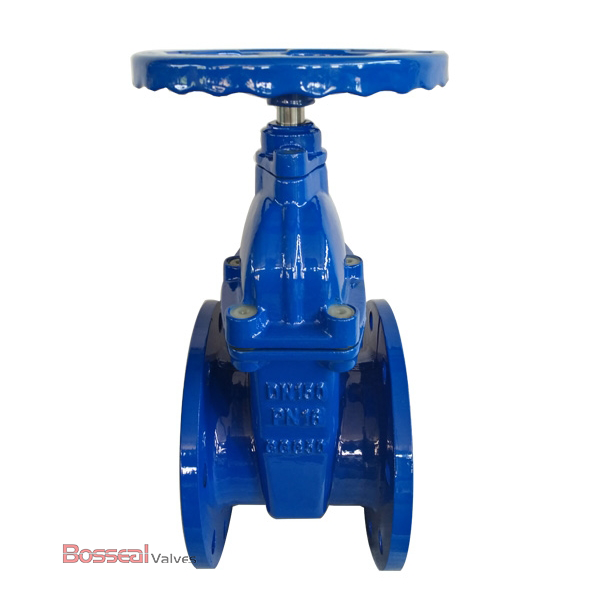

GGG50 Gate Valve, DIN 3352, DN700, PN15, Square Cap

DIN 3352 Resilient Gate Valve, GGG50 Body, DN700/28 Inch, PN15, Flanged End, EPDM/NBR/Viton Seat.

Valve Description

1871025 Gate Valve
Design Standard: BS 5163, AWWA, DIN 3352
Structure: Resilient Seat, Rising Stem
Nominal Size: DN700, 28 Inch
Nominal Class: PN15
Body Material: GGG50, ASTM A536, Cast Iron, Ductile Iron-GGG40
Bore Type: Standard Bore
Operation: Handwheel, Gear
Trim Material: Cast Iron, Ductile Iron-GGG40, GGG50, ASTM A536
Face to Face: EN558-3, DIN 3352-F4, DIN 3352-F5
Test and Inspection: EN 12266-1, DIN 3230
End Connection: Flanged

Key Features

1. Enhanced corrosion resistance with Fusion Bonded Epoxy Coating on both internal and external surfaces
2. Secure and reliable operation with a square cap design
3. Compatibility with Post Indicator Valves (PIV) for added functionality
4. Optional metal seat for superior sealing performance
5. Compliance with WRAS (Water Regulations Advisory Scheme) and AWWA (American Water Works Association) standards

Product Range

Body Material: Ductile Iron, Cast Iron
Pressure Range: PN10, PN16
Normal Diameter: 1/2 Inch - 80 Inch (DN15–DN2000)
Suitable Service: Water
End Connections: Flanged(FF, RF, RTJ), Socket Weld(SW), Threaded(NPT, BSP), Butt Weld(BW).
Working Temperature: -29°C - +80°C
Bonnet Types: Bolted Bonnet, Pressure Bonnet, Welded Bonnet, Bellow Seal
