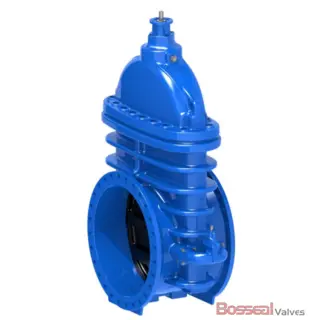

GGG40 Gate Valve, DN650, PN15, BS 5163, Resilient Seated

Key Specifications / Features

Model no. : 1871024

As a premier GGG40 resilient gate valve factory in China, we specialize in valves that adhere to BS 5163 standards. Our DN650 (26-inch) valves are constructed from high-quality ductile iron GGG40 and are rated for PN15 pressure. To ensure exceptional durability and corrosion resistance, both internal and external surfaces are coated with Fusion Bonded Epoxy. These valves are designed for reliable performance and longevity in demanding applications, making them ideal for various industrial and municipal needs.

Detail Information

GGG40 Resilient Gate Valve, DN650/26 Inch, PN15, Ductile Iron Body, Flanged, Handwheel/Gear Operation.

Valve Description

Product Item 1871024 Gate Valve
Design Standard: BS 5163, AWWA, DIN 3352
Structure: Resilient Seat, Rising Stem
Nominal Size: DN650, 26 Inch
Nominal Class: PN15
Body Material: ASTM A536, Cast Iron, Ductile Iron-GGG40, GGG50
Bore Type: Standard Bore
Operation: Handwheel, Gear
Trim Material: Cast Iron, Ductile Iron-GGG40, GGG50, ASTM A536
Face to Face: EN558-3, DIN 3352-F4, DIN 3352-F5
Test and Inspection: EN 12266-1, DIN 3230
End Connection: Flanged
Key Features: Internal & External with Fusion Bonded Epoxy Coating, Square Cap, PIV available, metal seat available, WRAS, AWWA available


Product Range

Body Material: Ductile Iron, Cast Iron
Normal Diameter: 1/2 Inch - 80 Inch (DN15–DN2000)
Pressure Range: PN10, PN16
Suitable Service: Water
End Connections: Flanged(FF, RF, RTJ), Socket Weld(SW), Threaded(NPT, BSP), Butt Weld(BW).
Working Temperature: -29°C - +80°C
