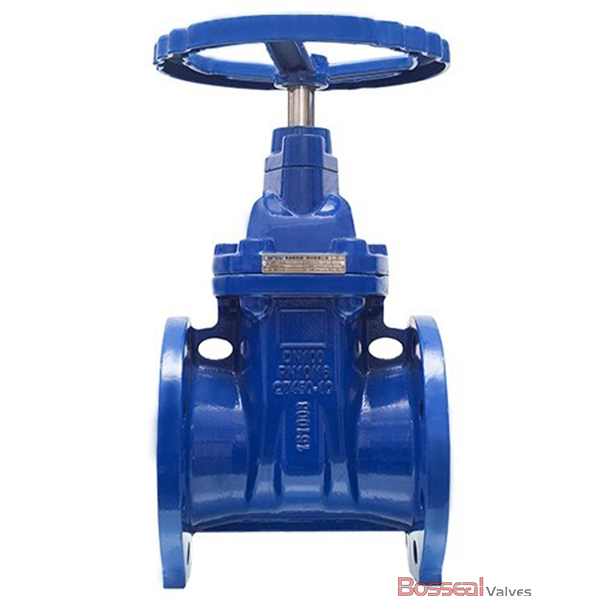

GGG40 Gate Valve, DN100, PN15, BS 5163, Resilient Seated

Key Specifications / Features

Model no. : 1871014

As a leading DN100 resilient gate valve factory in China, we produce valves that conform to BS 5163 standards. Our valves are constructed from high-grade ductile iron GGG40, with a 4-inch (DN100) size and a PN15 pressure rating. To ensure superior durability and corrosion resistance, both the internal and external surfaces are coated with Fusion Bonded Epoxy. These valves are engineered for reliable performance, making them ideal for a wide range of industrial and municipal applications.

Detail Information

GGG40 Resilient Gate Valve, DN100/4 Inch, PN15, Ductile Iron Body, Flanged, Handwheel/Gear Operation.

Valve Description

1871014 Gate Valve
Design Standard: BS 5163, AWWA, DIN 3352
Structure: Resilient Seat, Rising Stem
Nominal Size: DN100, 4 Inch
Nominal Class: PN15, Class 150 LB
Body Material: ASTM A536, Cast Iron, Ductile Iron, GGG40, GGG50
Bore Type: Standard Bore
Operation: Handwheel, Gear
Trim Material: Cast Iron, Ductile Iron-GGG40, GGG50, ASTM A536
Face to Face: EN558-3, DIN 3352-F4, DIN 3352-F5
Test and Inspection: EN 12266-1, DIN 3230
End Connection: Flanged
Key Features: Internal & External with Fusion Bonded Epoxy Coating, Square Cap, PIV available, metal seat available, WRAS, AWWA available


Product Range

Body Material: Ductile Iron, Cast Iron
Normal Diameter: 1/2 Inch - 80 Inch (DN15–DN2000)
Pressure Range: PN10, PN16
Suitable Service: Water
End Connections: Flanged(FF, RF, RTJ), Socket Weld(SW), Threaded(NPT, BSP), Butt Weld(BW).
Working Temperature: -29°C - +80°C
