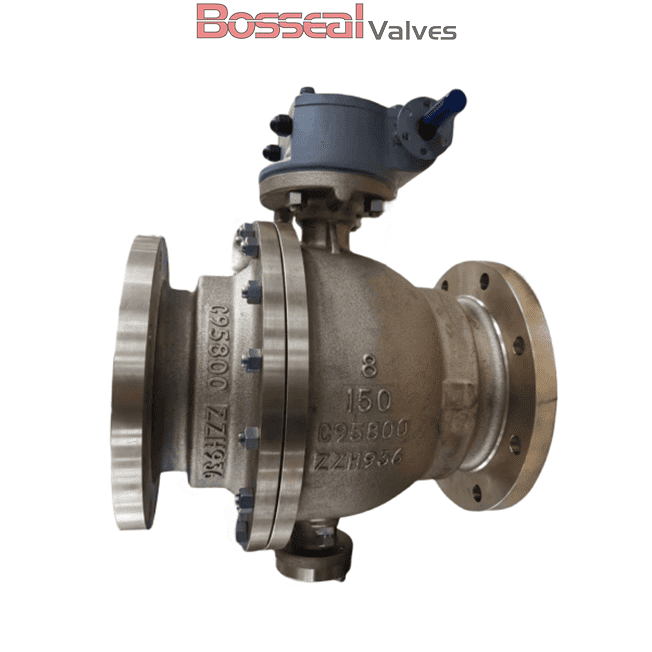

Gear Operated Ball Valves, BS 5351, B148 C95800, 28 IN, CL150

Key Specifications / Features

Model no. : BV-187301015

As a leading manufacturer of gear-operated ball valves, we produce high-quality valves designed to BS 5351 and API 6D standards. Our 28-inch (DN700) ball valve features a robust ASTM B148 C95800 aluminum bronze body and trim, ensuring exceptional corrosion resistance and durability. With a full bore design, it provides optimal flow capacity for demanding applications. Rated for Class 150 LB, it comes with raised face (RF) flanged ends for secure and reliable installation. Engineered for smooth operation and long service life, our gear-operated ball valves deliver superior performance.

Detail Information

Valve Description:
187301015 Aluminium Bronze Ball Valve
Design Standard: API 6D, BS 5351, ASME B16.34
Structure: 2pcs Body, Side Entry, Bolted Bonnet, Soft Seat
Nominal Size: 28 Inch, DN700
Nominal Class: 150 LB, PN20
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800, ASTM B150 C63200, Monel
Bore Type: Full Bore or Reduced Bore
End Connection: FF or RF Flanged
Operation: Gear
Seat Insert: RPTFE
Face to Face: ASME B16.10
Test and Inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-Static Device, Fire-Safe Design, Anti-Blowout Stem, Emergency Sealant Injection, Low Emission (Optional), Double Isolation & Bleed (DIB) (Optional), and Corrosion-Resistant Aluminum Bronze for Seawater Applications.

Product Range:
Body Material: Aluminium Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
End Connection: RF, FF
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
