Carbon Steel

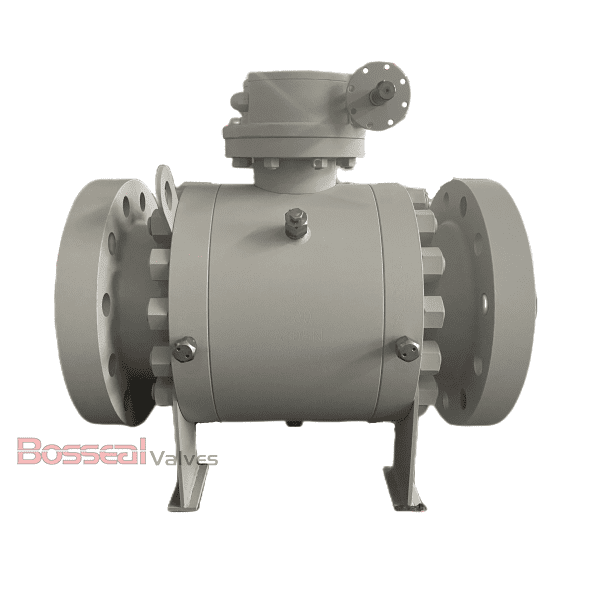

Ball Valve, ASTM A105N Body, 24 Inch/DN600, 2500 LB, Side Entry, RTJ Flanged End.
Ball Valve Description
1811188 Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Nominal Size: 24 Inch/DN600
Nominal Class: 2500 LB, PN420
Structure: 3pcs Body, Side Entry, Bolted Bonnet, Soft Seat
Operation: Lever/Gear
Body Material: Carbon Steel ASTM A105N or ASTM A350 LF2
Face to Face: ASME B16.10
Bore Type: Full Bore or Reduced Bore
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Test and Inspection: API 598, API 6D
Seat Insert: RPTFE, DEVLON, NYLON, PEEK
End Connection: RTJ Flanged
Key Features
1. Double Block & Bleed (DBB): Provides two barriers for safe venting or pressure bleeding.
2. Anti-Static Device: Prevents static electricity buildup, enhancing safety in hazardous environments.
3. Low Emission Compliance (Optional): Reduces fugitive emissions for applications requiring stringent environmental controls.
4. Anti-Blowout Stem: Prevents stem ejection under pressure, ensuring added safety.
5. Emergency Sealant Injection: Allows immediate sealing material injection in case of leakage emergencies.
6. Fire-Safe Design: Ensures valve functionality during and after exposure to fire.
7. Double Isolation & Bleed (DIB) Functionality (Optional): Provides enhanced isolation with two seating surfaces for improved safety.
Product Range
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 2500 LB
Working Temperature: -26°C - +150°C
End Connection: Raised Face (RF), Ring-Type Joint (RTJ), Butt Weld (BW), Hub
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
